Weidmüller

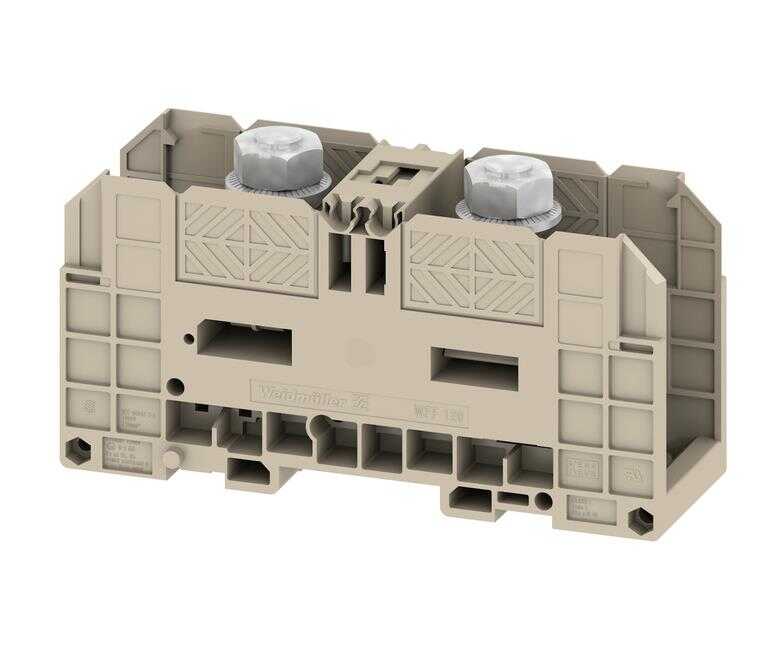

WEIDMULLER 1028500000, Cıvata tipi vidalı terminaller, Geçiş terminali, Nominal kesit: 120 mm², Dişli saplama bağlantısı, Doğrudan montaj

Name: WEIDMULLER 1028500000, Cıvata tipi vidalı terminaller, Geçiş terminali, Nominal kesit: 120 mm², Dişli saplama bağlantısı, Doğrudan montaj
Brand: Weidmüller
SKU: W1028500000
Price: 1492.60 TRY
Availability: InStock

Ürün Kodu: W1028500000

(0)

1.492,60 TL

Daha Fazla Klemens

Adet

KoleksiyonFiyat Alarmı

General ordering data

Version	Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection, Direct mounting
Order No.	1028500000
Type	WFF 120
GTIN (EAN)	4008190004866
Qty.	5 pc(s).

Dimensions and weights

Depth	72 mm
Depth (inches)	2.835 inch
Depth including DIN rail	80.5 mm
Height	132 mm
Height (inches)	5.197 inch
Width	42 mm
Width (inches)	1.654 inch
Net weight	246.662 g

Temperatures

Storage temperature	-25 °C...55 °C
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (IECEX)	IECEXULD15.0004U
Max. voltage (IECEX)	1100 V
Current (IECEX)	269 A
Wire cross section max. (IECEX)	120 mm²
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

End cover plate required	No
Number of levels	1
Number of clamping points per level	2
Levels cross-connected internally	No
PE connection	No
Rail	TS 35

Additional technical data

Explosion-tested version	Yes
Installation advice	Direct mounting
Number of similar terminals	1
Open sides	closed
Type of mounting	Snap-on

CSA rating data

Certificate No. (CSA)	200039-1244019
Current size C (CSA)	310 A
Voltage size C (CSA)	600 V
Wire cross section max. (CSA)	250 kcmil
Wire cross section min. (CSA)	10 AWG
