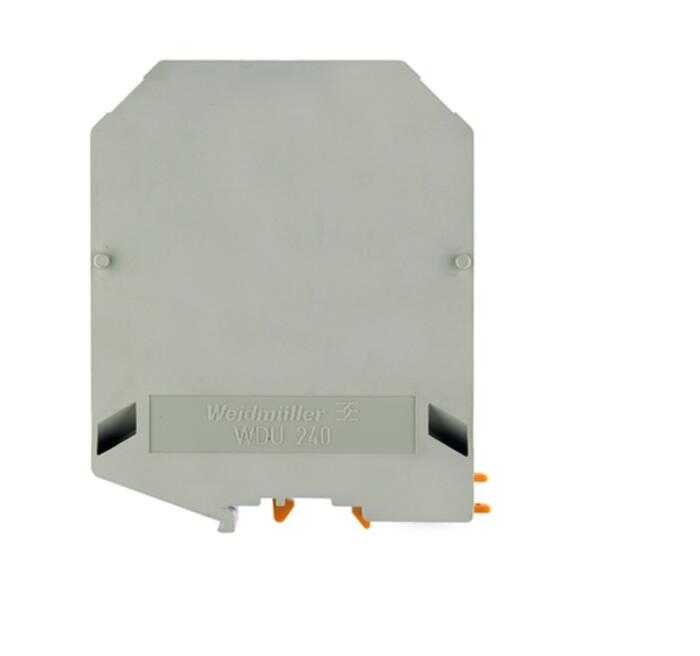

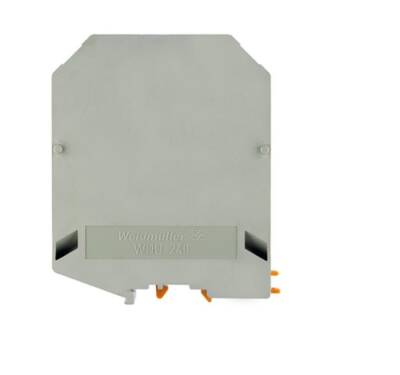

WEIDMULLER 1802780000 Geçiş klemensi, Vidalı bağlantı, 240 mm², 1000 V, 415 A, koyu bej

Name: WEIDMULLER 1802780000 Geçiş klemensi, Vidalı bağlantı, 240 mm², 1000 V, 415 A, koyu bej
Brand: Weidmüller
SKU: W1802780000
Price: 5756.32 TRY
Availability: OutOfStock

Ürün Kodu: W1802780000

5.756,32 TL

General ordering data

Version	Feed-through terminal, Screw connection, 240 mm², 1000 V, 415 A, dark beige
Order No.	1802780000
Type	WDU 240
GTIN (EAN)	4032248313723
Qty.	2 pc(s).

Dimensions and weights

Depth	123.7 mm
Depth (inches)	4.87 inch
Depth including DIN rail	124 mm
Height	100 mm
Height (inches)	3.937 inch
Width	36 mm
Width (inches)	1.417 inch
Net weight	472.5 g

Temperatures

Storage temperature	-25 °C...55 °C
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	c6099607-b1cd-4fc8-8f5b-8c

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	KEMA01ATEX2186U
Max. voltage (ATEX)	1100 V
Current (ATEX)	350 A
Wire cross section max. (ATEX)	240 mm²
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7	Ex e II
Ex 2014/34/EU label	II 2 G D

System specifications

Version	Screw connection, for screwable cross-connection, in closed state
End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 32, TS 35
N-function	No
PE function	No
PEN function	Yes

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Cross-section for connected wire, stranded, two clampable wires, max.	95 mm²
Cross-section for connected wire, stranded, two clampable wires, min.	35 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.	50 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.	35 mm²
Wire connection cross section, finely stranded, two clampable wires, min.	50 mm²
Wire cross-section, finely stranded, two clampable wires, max.	95 mm²
