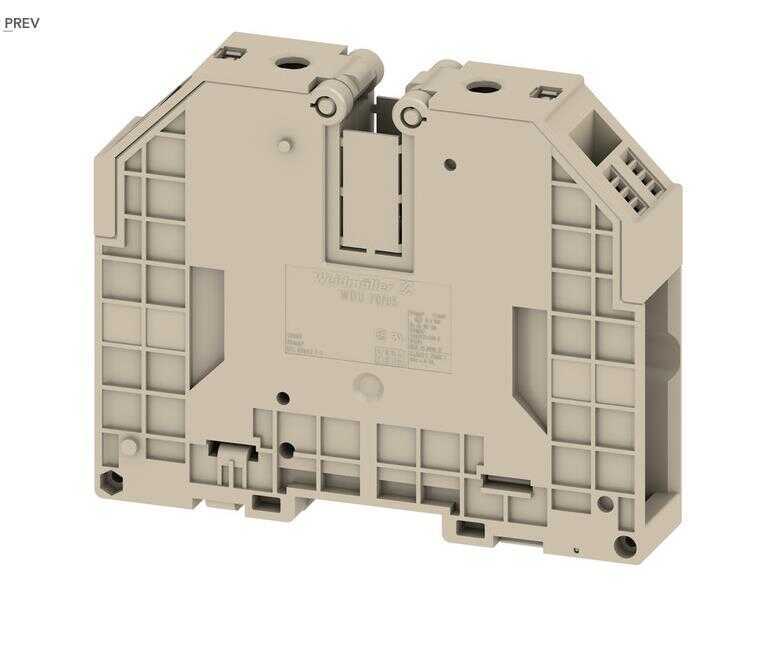

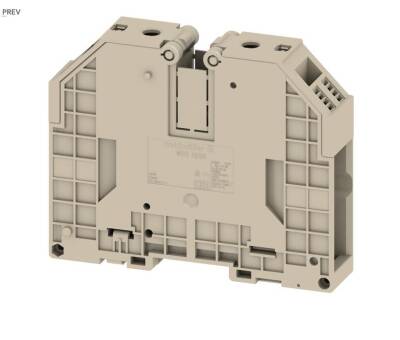

Weidmüller 1024600000, Geçiş klemensi, Vidalı bağlantı, 95 mm², 1000 V, 232 A, koyu bej - 1
Weidmüller

Weidmüller 1024600000, Geçiş klemensi, Vidalı bağlantı, 95 mm², 1000 V, 232 A, koyu bej

Ürün Kodu: W1024600000
3.729,28 TL
1.506,75 TL
%60
VersionFeed-through terminal, Screw connection, 95 mm², 1000 V, 232 A, dark beige
Order No.1024600000
TypeWDU 70/95
GTIN (EAN)4008190105990
Qty.10 pc(s).
Depth107 mm
Depth (inches)4.213 inch
Depth including DIN rail115.5 mm
Height132 mm
Height (inches)5.197 inch
Width27 mm
Width (inches)1.063 inch
Net weight330.89 g
Storage temperature-25 °C...55 °C
Operating temperature rangeFor operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.-60 °C
Continuous operating temp., max.130 °C
MaterialWemid
Colourdark beige
UL 94 flammability ratingV-0
Certificate No. (ATEX)DEMKO14ATEX1338U
Certificate No. (IECEX)IECEXULD14.0005U
Max. voltage (ATEX)1100 V
Current (ATEX)218 A
Wire cross section max. (ATEX)95 mm²
Max. voltage (IECEX)1100 V
Current (IECEX)218 A
Wire cross section max. (IECEX)95 mm²
Operating temperature rangeFor operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7Ex eb II C Gb
Ex 2014/34/EU labelII 2 G D
VersionScrew connection, for screwable cross-connection, in closed state
End cover plate requiredNo
Number of potentials1
Number of levels1
Number of clamping points per level2
Number of potentials per tier1
Levels cross-connected internallyNo
PE connectionNo
RailTS 35
N-functionNo
PE functionNo
PEN functionNo
Cross-section for connected wire, stranded, two clampable wires, max.35 mm²
Cross-section for connected wire, stranded, two clampable wires, min.16 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.35 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.16 mm²
Wire connection cross section, finely stranded, two clampable wires, min.16 mm²
Wire cross-section, finely stranded, two clampable wires, max.35 mm²
Explosion-tested versionYes
Installation adviceDirect mounting
Ürün Filtreleri
Barkod:4008190105990
Tedarikçi Ürün Kodu:W1024600000
