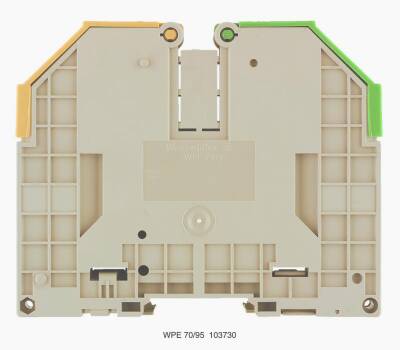

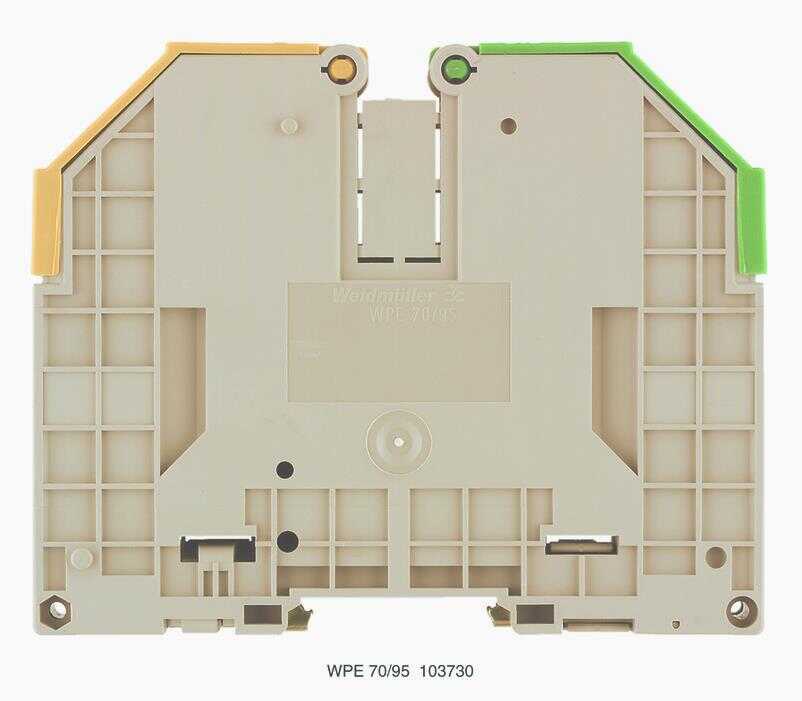

WEIDMULLER 1037300000, PE terminali, Vidalı bağlantı, 95 mm², 11400 A (95 mm²), Yeşil/sarı

Name: WEIDMULLER 1037300000, PE terminali, Vidalı bağlantı, 95 mm², 11400 A (95 mm²), Yeşil/sarı
Brand: Weidmüller
SKU: W1037300000
Price: 5353.32 TRY
Availability: OutOfStock

Ürün Kodu: W1037300000

5.353,32 TL

General ordering data

Version	PE terminal, Screw connection, 95 mm², 11400 A (95 mm²), Green/yellow
Order No.	1037300000
Type	WPE 70/95
GTIN (EAN)	4008190495664
Qty.

Dimensions and weights

Depth	107 mm
Depth (inches)	4.213 inch
Depth including DIN rail	115.5 mm
Height	132 mm
Height (inches)	5.197 inch
Width	27 mm
Width (inches)	1.063 inch
Net weight	387.803 g

Temperatures

Storage temperature	-25 °C...55 °C
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	1007fa59-32ea-4163-aa91-1482deede565

Material data

Material	Wemid
Colour	Green/yellow
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	DEMKO14ATEX1338U
Certificate No. (IECEX)	IECEXULD14.0005U
Wire cross section max. (ATEX)	95 mm²
Wire cross section max. (IECEX)	95 mm²
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

Version	Screw connection, With PE connection, in closed state
End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	Yes
Rail	TS 35
N-function	No
PE function	Yes
PEN function	Yes

Additional technical data

Explosion-tested version	Yes
Installation advice	when screwed in
Interlock	for screw fixing
Number of similar terminals	1
Open sides	closed
Type of mounting	when screwed in
