Weidmüller

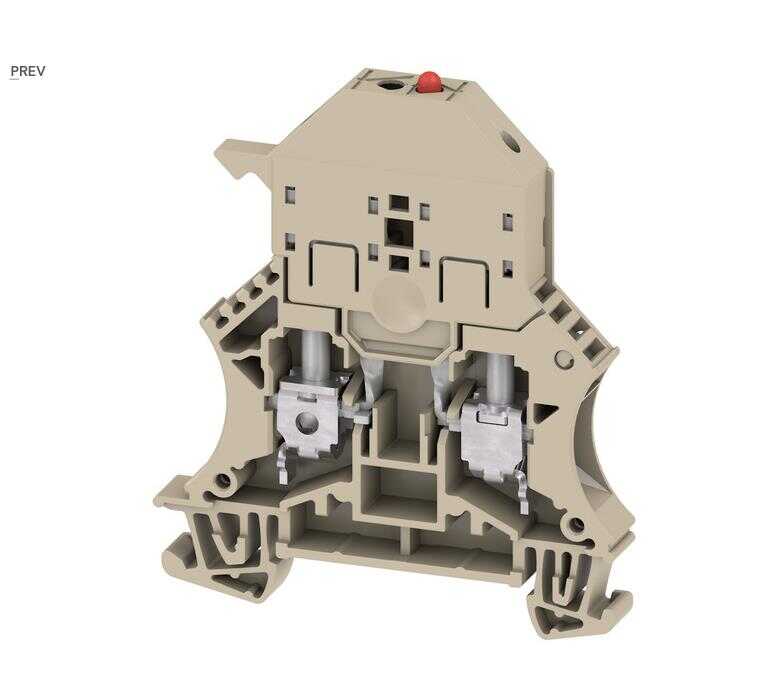

WEIDMULLER 1011300000,W-Serisi, Sigortalı terminal, Nominal kesit: 6 mm², Vidalı bağlantı

Name: WEIDMULLER 1011300000,W-Serisi, Sigortalı terminal, Nominal kesit: 6 mm², Vidalı bağlantı
Brand: Weidmüller
SKU: W1011300000
Price: 199.37 TRY
Availability: InStock

Ürün Kodu: W1011300000

(0)

419,23 TL

199,37 TL

%52

Daha Fazla Klemens

Adet

Tahmini 14.08.2026 tarihinde kargoda

KoleksiyonFiyat Alarmı

General ordering data

Version	W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection
Order No.	1011300000
Type	WSI 6/LD 10-36V DC/AC
GTIN (EAN)	4008190076115
Qty.	10 pc(s).

Dimensions and weights

Depth	71.5 mm
Depth (inches)	2.815 inch
Depth including DIN rail	72 mm
Height	60 mm
Height (inches)	2.362 inch
Width	7.9 mm
Width (inches)	0.311 inch
Net weight	19.47 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Screw connection, Fuse isolator, with LED, for screwable cross-connection, One end without connector
End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.	2.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.	0.5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.	0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.	2.5 mm²
