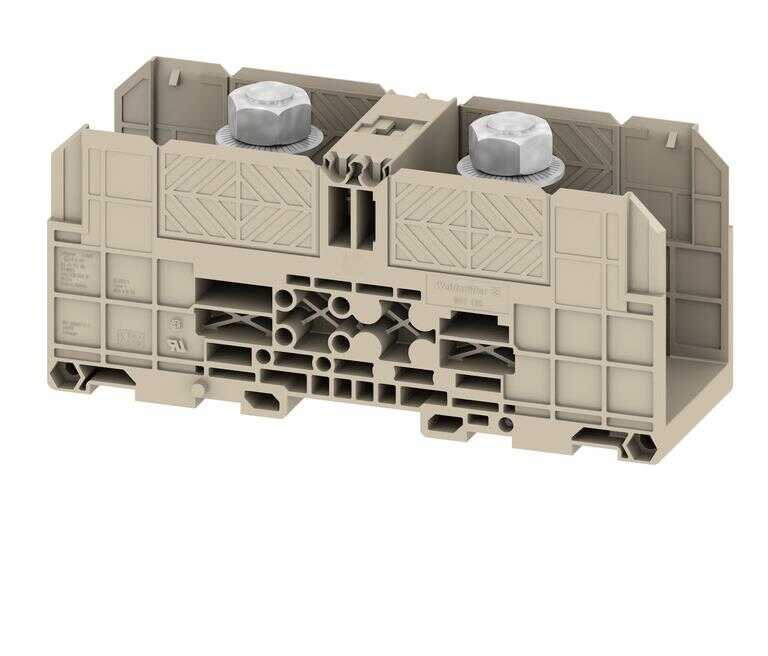

Weidmüller 1028600000,Cıvata tipi vidalı terminaller, Geçiş terminali, Nominal kesit: 185 mm², Dişli saplama bağlantısı - 1
Weidmüller

Weidmüller 1028600000,Cıvata tipi vidalı terminaller, Geçiş terminali, Nominal kesit: 185 mm², Dişli saplama bağlantısı

Ürün Kodu: W1028600000
4.198,44 TL
1.696,22 TL
%60
VersionBolt-type screw terminals, Feed-through terminal, Rated cross-section: 185 mm², Threaded stud connection
Order No.1028600000
TypeWFF 185
GTIN (EAN)4008190044091
Qty.4 pc(s).
Depth77.5 mm
Depth (inches)3.051 inch
Depth including DIN rail87 mm
Height163 mm
Height (inches)6.417 inch
Width55 mm
Width (inches)2.165 inch
Net weight411.205 g
Storage temperature-25 °C...55 °C
Operating temperature rangeFor operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.-50 °C
Continuous operating temp., max.120 °C
MaterialWemid
Colourdark beige
UL 94 flammability ratingV-0
Operating temperature rangeFor operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7Ex eb II C Gb
Ex 2014/34/EU labelII 2 G D
End cover plate requiredYes
Number of levels1
Number of clamping points per level2
Levels cross-connected internallyNo
PE connectionNo
RailTS 35
Explosion-tested versionYes
Number of similar terminals1
Open sidesclosed
Type of mountingSnap-on
Certificate No. (CSA)200039-1244019
Current size C (CSA)360 A
Current size D (CSA)5 A
Voltage size C (CSA)600 V
Voltage size D (CSA)600 V
Wire cross section max. (CSA)500 kcmil
Wire cross section min. (CSA)8 AWG
2 x cable lugs DIN 46 23410...185 mm²
2 x cable lugs DIN 46 23525...185 mm²
Cable lug to DIN 4623410...240 mm²
Cable lug to DIN 4623525...240 mm²
Clamping range, max.240 mm²
Clamping range, min.10 mm²
Number of connections2
Stud size for spade connectionM 12
