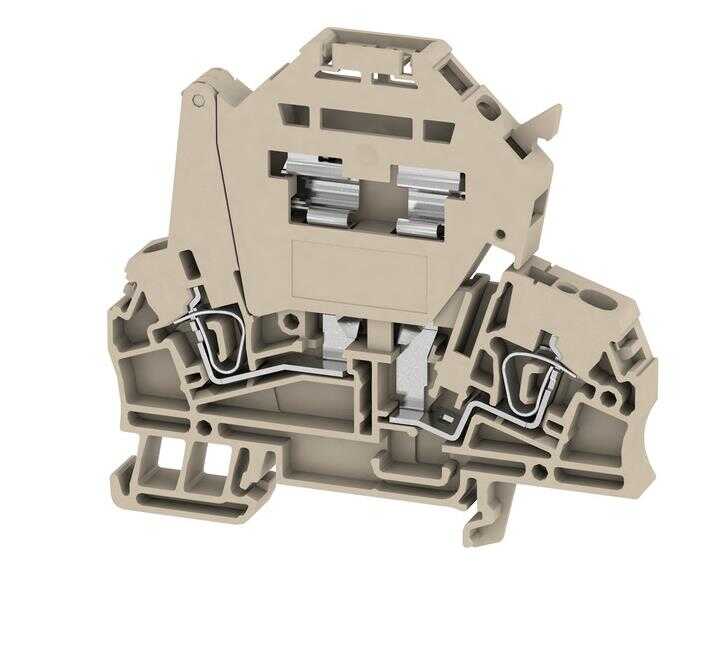

WEIDMULLER 1616400000, Z serisi, Sigortalı terminal, Nominal kesit: 2,5 mm², Germe klemp bağlantısı, koyu bej, Doğrudan montaj

Name: WEIDMULLER 1616400000, Z serisi, Sigortalı terminal, Nominal kesit: 2,5 mm², Germe klemp bağlantısı, koyu bej, Doğrudan montaj
Brand: Weidmüller
SKU: W1616400000
Price: 562.40 TRY
Availability: OutOfStock

Ürün Kodu: W1616400000

562,40 TL

General ordering data

Version	Z-series, Fuse terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting
Order No.	1616400000
Type	ZSI 2.5
GTIN (EAN)	4008190196592
Qty.	50 pc(s).

Dimensions and weights

Depth	73 mm
Depth (inches)	2.874 inch
Depth including DIN rail	74 mm
Height	79.5 mm
Height (inches)	3.13 inch
Width	7.9 mm
Width (inches)	0.311 inch
Net weight	19.54 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50
Continuous operating temp., max.	120

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Tension-clamp connection, Fuse cartridge, Without LED, for plug-in cross-connector, One end without connector
End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	No
Installation advice	Direct mounting
Number of similar terminals	1
Open sides	right
Type of mounting	Snap-on

CSA rating data

Certificate No. (CSA)	200039-1152892
Current size B (CSA)	15 A
Current size C (CSA)	15 A
Current size D (CSA)	15 A
Voltage size B (CSA)	600 V
Voltage size C (CSA)	600 V
Voltage size D (CSA)	150 V
Wire cross section max. (CSA)	12 AWG
Wire cross section min. (CSA)	26 AWG

Conductors for clamping (additional connection)

Connection direction

top
