Weidmüller

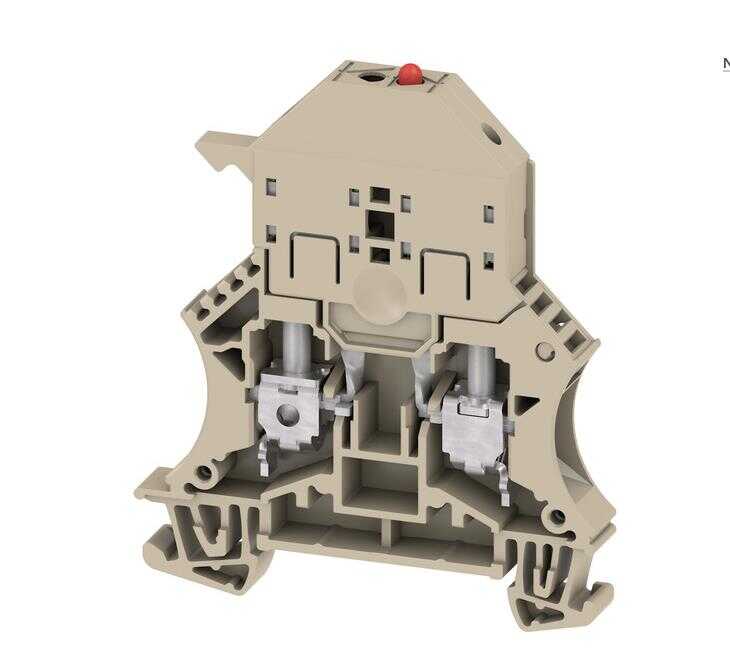

Weidmüller 1012200000, W-Serisi, Sigortalı terminal, Nominal kesit: 6 mm², Vidalı bağlantı -
Ürün Kodu: W1012200000
(0)
797,72 TL
478,63 TL
%40
Daha Fazla Klemens
Adet
Tahmini 23.11.2026 tarihinde kargoda
KoleksiyonFiyat Alarmı
General ordering data
| Version | W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection |
| Order No. | 1012200000 |
| Type | WSI 6/LD 30-70V DC/AC |
| GTIN (EAN) | 4008190039813 |
| Qty. | 10 pc(s). |
Dimensions and weights
| Depth | 71.5 mm |
| Depth (inches) | 2.815 inch |
| Depth including DIN rail | 72 mm |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 7.9 mm |
| Width (inches) | 0.311 inch |
| Net weight | 19.63 g |
Temperatures
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
Material data
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
System specifications
| Version | Screw connection, Fuse isolator, with LED, for screwable cross-connection, One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 2.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 2.5 mm² |
Additional technical data
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
Ürün Filtreleri | ||
|---|---|---|
| : | Vidali Klemens | |
| Barkod | : | 4008190039813 |
| Tedarikçi Ürün Kodu | : | W1012200000 |
