Weidmüller

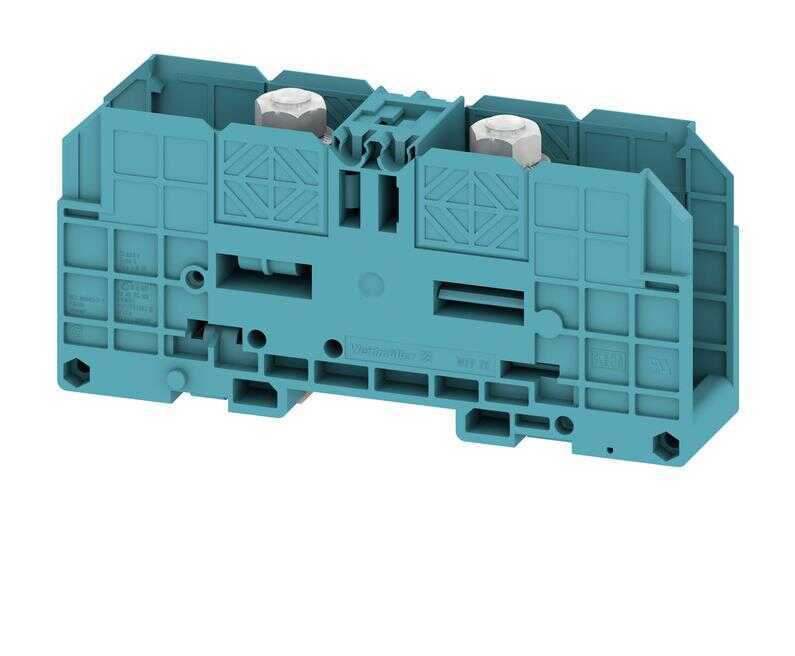

WEIDMULLER 1028480000 Cıvata tipi vidalı terminaller, Geçiş terminali, Nominal kesit: 70 mm², Dişli saplama bağlantısı, Doğrudan montaj

Ürün Kodu : W1028480000
Barkod : 4008190073329
(0)
Yorum Yap
635,57 TL
 Favorilerime Ekle

Tükendi / Dilerseniz bu ürünü sizin için getirebiliriz!

Gelince Sizi Arayalım
Daha Fazla Klemens
Version Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud connection, Direct mounting
Order No. 1028480000
Type WFF 70 BL
GTIN (EAN) 4008190073329
Qty. 10 pc(s).
Depth 61 mm
Depth (inches) 2.402 inch
Depth including DIN rail 69.5 mm
Height 132 mm
Height (inches) 5.197 inch
Width 31.8 mm
Width (inches) 1.252 inch
Net weight 159.2 g
Storage temperature -25 °C...55 °C
Operating temperature range For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min. -50 °C
Continuous operating temp., max. 120 °C
Material Wemid
Colour blue
UL 94 flammability rating V-0
Certificate No. (IECEX) IECEXULD15.0004U
Max. voltage (IECEX) 1100 V
Current (IECEX) 192 A
Wire cross section max. (IECEX) 70 mm²
Operating temperature range For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7 Ex eb II C Gb
Ex 2014/34/EU label II 2 G D
End cover plate required No
Number of levels 1
Number of clamping points per level 2
Levels cross-connected internally No
PE connection No
Rail TS 35
Explosion-tested version Yes
Installation advice Direct mounting
Number of similar terminals 1
Open sides closed
Type of mounting Snap-on
