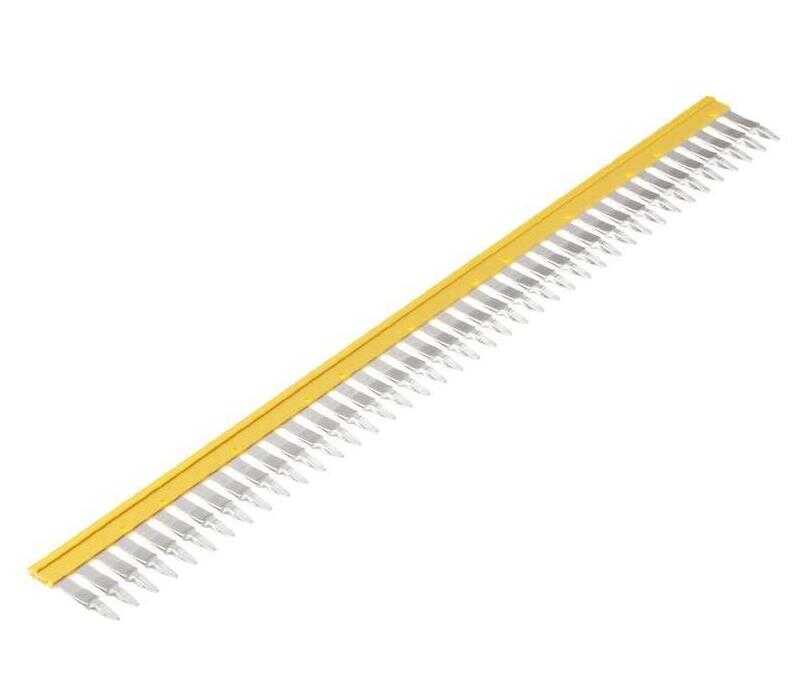

General ordering data
| Version | W-Series, Cross-connector, 32 A |
| Order No. | 1758270000 |
| Type | ZQV 4N/41 |
| GTIN (EAN) | 4032248169801 |
| Qty. | 10 pc(s). |
| Delivery status | This article will no longer be available in the future. |
| Available until | 2021-12-31 |
| Alternative product | 2883810000 |
Dimensions and weights
| Depth | 25.7 mm |
| Depth (inches) | 1.012 inch |
| Height | 248.8 mm |
| Height (inches) | 9.795 inch |
| Width | 2.8 mm |
| Width (inches) | 0.11 inch |
| Net weight | 2 g |
Temperatures
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 |
| Continuous operating temp., max. | 130 |
Material data
| Material | Wemid |
| Colour | yellow |
| UL 94 flammability rating | V-0 |
System specifications
| Version | For the terminals |
Additional technical data
| Type of fixing | Plugged |
Cross-connector
| Rated current, 2-pole | 32 A |
| Rated current, multi-pole | 32 A |
| Type | Cross-connector |
Dimensions
| Pitch in mm (P) | 6.1 mm |
Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 4032248169801 |
| Tedarikçi Ürün Kodu | : | W1758270000 |
