| Range of product | TeSys D |
|---|---|
| Device short name | LR2D |

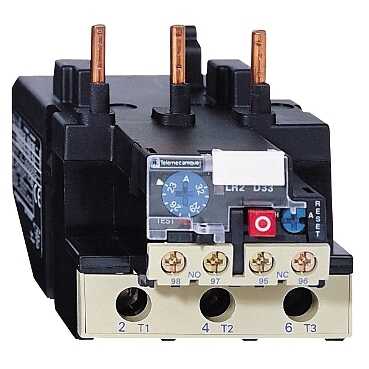

| Product or component type | Thermal overload relay |
| Relay application | Motor protection |
| Product compatibility | LE4D656 |
| Protection type | BS fuse 5 A - for control circuit GB2 circuit breaker 5 A - for control circuit GG fuse 5 A - for control circuit |
| Connections - terminals | Control circuit: screw clamp terminals 1 x 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 x 1…2.5 mm²flexible without cable end Control circuit: screw clamp terminals 2 x 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 2 x 1…2.5 mm²flexible without cable end Control circuit: screw clamp terminals 2 x 1…2.5 mm²solid without cable end |
| Quantity per set | Set of 10 |
| Network frequency | 50/60 Hz |
|---|---|
| Mounting support | Plate, with EverLink power terminal block Rail, with EverLink power terminal block |
| Tripping threshold | 1.14 +/-0.06 In A conforming to IEC 60947-4-1 |
| Surge withstand | 6 kV conforming to IEC 60801-5 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz for power circuit conforming to IEC 60947-4-1 |
| Phase failure sensitivity | Tripping current I 30 % of Ir on one phase, the others at Ir conforming to IEC 60947-4-1 |
| Tightening torque | Control circuit: 1.7 N.m on screw clamp terminals |
| Height | 121 mm |
| Width | 75 mm |
| Depth | 100 mm |
| Standards | IEC 60947-4-1 UL 508 IEC 60947-5-1 CSA C22.2 No 14 Directive ATEX 94/9/EC EN 60947-4-1 EN 60947-5-1 |
|---|---|
| Product certifications | RINA LROS (Lloyds register of shipping) DNV CSA GL UL ATEX INERIS BV GOST CCC |
| Protective treatment | TH conforming to IEC 60068 |
| IP degree of protection | IP2X conforming to VDE 0106 |
| Ambient air temperature for operation | -20…60 °C conforming to IEC 60947-4-1 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Shock resistance | 15 gn 11 ms conforming to IEC 60068-2-7 |
| Vibration resistance | 6 gn on plate conforming to IEC 60068-2-6 |
| Dielectric strength | 6 kV 50 Hz conforming to IEC 60255-5 |
| Warranty (in months) | 18 |
|---|
Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | LR2D3363 |
| Tedarikçi Ürün Kodu | : | LR2D3363 |
