Schneider

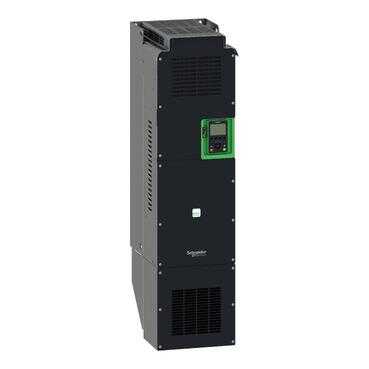

Schneider Electric ATV630C16N4 Hız Kontrol Cihazı ATV630 - 160 kW/200 HP - 380...480 V - IP00

Ürün Kodu : ATV630C16N4
Barkod : 38174
144.662,98 TL
detay-teklif.svg (4 KB)
Bilgi/Teklif İste
  • Ürün Özellikleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler
  • Beni Ara
  • Ana
    Ürün serisi

    Altivar Process ATV600


    Ürün ya da bileşen tipi

    Değişken hızlı sürücü


    ürüne özel uygulama

    Proses ve altyapı


    Ürün grubu

    ATV630


    model

    Standart tip


    ürün varış yeri

    Senkron motorlar
    Asenkron motorlar


    EMC filtresi

    Integrated with 150 m conforming to EN/IEC 61800-3 category C3


    IP koruma derecesi

    IP00 conforming to IEC 61800-5-1
    IP00 'e uygunIEC 60529
    IP21 (VW3A9704 kitiyle) 'e uygunIEC 61800-5-1
    IP21 (VW3A9704 kitiyle) 'e uygunIEC 60529


    soğutmanın tipi

    Zorlamalı konveksiyon


    besleme frekansı

    50...60 Hz - 5...5 %


    [Us] nominal besleme gerilimi

    380...480 V - 15...10 %


    motor gücü kW

    160 kW (normal şart)
    132 kW (Ağır şart)


    motor gücü hp

    250 hp normal şart
    200 hp Ağır şart


    hat akımı

    284 A -de 380 V (normal şart)
    262 A -de 480 V (normal şart)
    237 A -de 380 V (Ağır şart)
    213 A -de 480 V (Ağır şart)


    muhtemel hat Isc

    50 kA


    görünen güç

    201,3 kVA -de 480 V (normal şart)
    161,4 kVA -de 480 V (Ağır şart)


    sürekli çıkış akımı

    302 A -de 2,5 kHz için normal şart
    250 A -de 2,5 kHz için Ağır şart


    maksimum geçici akım

    332,2 A süresince 60 s (normal şart)
    375 A süresince 60 s (Ağır şart)


    asenkron motor kontrol profili

    Sabit tork standartı
    Optimum moment modu
    Değişken moment standardı


    senkron motor kontrol profili

    Sabit mıknatıslı motor
    Synchronous reluctance motor


    çıkış frekansı

    0,0001…0,5 kHz


    hız kontrol cihazı çıkış frekansı

    0,1…599 Hz


    nominal anahtarlama frekansı

    2,5 kHz


    anahtarlama frekansı

    2.5...8 kHz with derating factor
    2...8 kHz adjustable


    güvenlik fonksiyonu

    STO (safe torque off) SIL 3


    Dijital giriş lojiği

    16 önceden ayarlı hız


    haberleşme port protokolü

    Modbus seri
    Modbus TCP
    Ethernet


    seçenek kartı

    Slot A: communication module, Profibus DP V1
    Slot A: communication module, Profinet
    Slot A: communication module, DeviceNet
    Slot A: communication module, Modbus TCP/EtherNet/IP
    Slot A: communication module, CANopen daisy chain RJ45
    Slot A: communication module, CANopen SUB-D 9
    Slot A: communication module, CANopen screw terminals
    Slot A/slot B: digital and analog I/O extension module
    Slot A/slot B: output relay extension module
    Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link
    Communication module, BACnet MS/TP
    Communication module, Ethernet Powerlink


    Tamamlayıcı
    Montaj tipi

    Duvara monte


    çıkış gerilimi

    <= güç besleme gerilimi


    izin verilebilir geçici akım güçlendirmesi

    1.1 x In during 60 s (normal duty)
    1.5 x In during 60 s (heavy duty)


    motor kayma kompanzasyonu

    Sürekli mıknatıslı motor yasasında bulunmaz
    Otomatik her türlü yük
    Bastırılabilir
    Ayarlanabilir


    hızlanma ve yavaşlama rampaları

    Linear adjustable separately from 0.01...9999 s


    durana kadar frenleme

    DC enjeksiyon ile


    koruma tipi

    Thermal protection: motor
    Safe torque off: motor
    Motor phase break: motor
    Thermal protection: drive
    Safe torque off: drive
    Overheating: drive
    Overcurrent between output phases and earth: drive
    Overload of output voltage: drive
    Short-circuit protection: drive
    Motor phase break: drive
    Overvoltages on the DC bus: drive
    Line supply overvoltage: drive
    Line supply undervoltage: drive
    Line supply phase loss: drive
    Overspeed: drive
    Break on the control circuit: drive


    frekans çözünürlüğü

    Display unit: 0.1 Hz
    Analog input: 0.012/50 Hz


    elektrikli bağlantı

    Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16
    Hat tarafı: vidalı terminal 2 x 95...3 x 120 mm²/2 x AWG 3/0...2 x 300 kcmil
    Motor: vidalı terminal 2 x 95...3 x 120 mm²/2 x AWG 3/0...2 x 300 kcmil


    konnektörün tipi

    RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP
    RJ45 (on the remote graphic terminal) for Modbus serial


    değiştirme modu

    Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP


    adreslerin sayısı

    1…247 for Modbus serial


    erişim yöntemi

    Slave Modbus TCP


    besleme

    External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
    Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
    Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection


    yerel sinyalleme

    3 LEDs for local diagnostic
    3 LEDs (dual colour) for embedded communication status
    4 LEDs (dual colour) for communication module status
    1 LED (red) for presence of voltage


    Genişlik

    320 mm


    Yükseklik

    852 mm


    Derinlik

    390 mm


    Ürün ağırlığı

    82 kg


    analog giriş sayısı

    3


    analog giriş tipi

    AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits
    AI1, AI2, AI3 software-configurable current: 0...20 mA/4...20 mA, impedance: 250 Ohm, resolution 12 bits


    Dijital giriş sayısı

    8


    Dijital giriş tipi

    DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm
    DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
    STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm


    giriş uyumluluğu

    DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2
    DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
    STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2


    Dijital giriş lojiği

    Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1)
    Negative logic (sink) (DI1...DI6), > 16 V (state 0), < 10 V (state 1)
    Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1)
    Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1)


    analog çıkış sayısı

    2


    analog çıkış tipi

    Software-configurable voltage AO1, AO2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
    Software-configurable current AO1, AO2: 0...20 mA, resolution 10 bits


    örnekleme süresi

    2 ms +/- 0.5 ms (DI1...DI4) - discrete input
    5 ms +/- 1 ms (DI5, DI6) - discrete input
    5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input
    10 ms +/- 1 ms (AO1) - analog output


    doğruluk

    +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
    +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output


    doğrusallık hatası

    AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
    AO1, AO2: +/- 0.2 % for analog output


    röle çıkış sayısı

    3


    röle çıkış tipi

    Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
    Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
    Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles


    yenileme süresi

    Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)


    minimum anahtarlama akımı

    Relay output R1, R2, R3: 5 mA at 24 V DC


    maksimum anahtarlama akımı

    Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
    Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
    Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
    Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC


    yalıtım

    Güç ve kontrol arasındaki terminaller


    Variable speed drive application selection

    Compressor centrifugal Building - HVAC
    Diğer uygulamalar Food and beverage processing
    Fan Mining mineral and metal
    Pump Mining mineral and metal
    Fan Oil and gas
    Diğer uygulamalar Water and waste water
    Screw compressor Building - HVAC
    Pump Food and beverage processing
    Fan Food and beverage processing
    Atomization Food and beverage processing
    Electro submersible pump (ESP) Oil and gas
    Water injection pump Oil and gas
    Jet fuel pump Oil and gas
    Compressor for refinery Oil and gas
    Centrifuge pump Water and waste water
    Positive displacement pump Water and waste water
    Electro submersible pump (ESP) Water and waste water
    Screw pump Water and waste water
    Lobe compressor Water and waste water
    Screw compressor Water and waste water
    Compressor centrifugal Water and waste water
    Fan Water and waste water
    Konveyör Water and waste water
    Mixer Water and waste water


    Motor power range AC-3

    110…220 kW -de 380…440 V 3 faz
    110…220 kW at 480…500 V 3 phases


    Ortam
    yalıtım direnci

    > 1 MOhm 500 V DC for 1 minute to earth


    gürültü seviyesi

    69.9 dB conforming to 86/188/EEC


    W cinsinden güç dağılımı

    Zorlamalı konveksiyon: 3270 W -de 380 V 2,5 kHz


    soğutma havası hacmi

    600 m3/h


    Çalışma konumu

    Dikey +/- 10 derece


    maximum THDI

    <48 % full load conforming to IEC 61000-3-12


    elektromanyetik uyumluluk

    Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
    Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
    1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
    Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6


    kirletme derecesi

    2 conforming to EN/IEC 61800-5-1


    titreşim direnci

    1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
    1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6


    darbe dayanımı

    15 gn için 11 ms 'e uygunIEC 60068-2-27


    bağıl nem

    5…95 % without condensation conforming to IEC 60068-2-3


    çalışma için ortam hava sıcaklığı

    -15…50 °C (without derating)
    50…60 °C (with derating factor)


    Depolama ortam koşulları

    -40…70 °C


    çalışma yüksekliği

    <= 1000 m without derating
    1000...4800 m with current derating 1 % per 100 m


    standartlar

    UL 508C
    EN/IEC 61800-3
    Environment 1 category C2 EN/IEC 61800-3
    Environment 2 category C3 EN/IEC 61800-3
    EN/IEC 61800-5-1
    IEC 61000-3-12
    IEC 60721-3
    IEC 61508
    IEC 13849-1


    Ürün sertifikaları

    ATEX INERIS
    DNV-GL
    CSA
    TÜV
    UL
    ATEX zone 2/22


    İşaretleme

    CE


    Packing Units
    Birim paket türü 1

    PCE


    Paketteki birim sayısı

    1


    Paket ağırlığı (Lbs)

    125 kg


    Paket 1 Yükseklik

    48 cm


    Paket 1 genişliği

    66 cm


    Paket 1 Uzunluk

    103 cm


    Birim paket türü 2

    CAR


    Paketteki birim sayısı 2

    1


    Paket 2 Ağırlığı

    125 kg


    Paket 2 Yükseklik

    65 cm


    Paket 2 genişliği

    47 cm


    Paket 2 Uzunluk

    103 cm


    Offer Sustainability
    Sürdürülebilir teklif durumu

    Green Premium ürünü


    REACh Düzenlemesi

    REACh Bildirisi


    EU RoHS Direktifi

    Proaktif uyumluluk (Ürün, EU RoHS yasal kapsamında değil)
    EU RoHS Bildirisi


    Cıva içermez

    Evet


    RoHS muafiyet bilgileri

    Evet


    Çin RoHS Düzenlemesi

    Çin RoHS beyanı


    Çevre Beyanı

    Çevresel Ürün Profili


    Döngüsellik Profili

    Kullanım Sonu Bilgileri


    WEEE

    Ürün, Avrupa Birliği pazarlarında özel atık toplama ilkelerine uygun şekilde atılmalıdır ve hiçbir suretle çöp kutularına bırakılmamalıdır.


    Geliştirme İmkanı

    Geliştirilmiş bileşenler mevcuttur


    Sözleşme garantisi
    Garanti

    18 ay

    Garanti Bilgisi
    :
    24
