Schneider

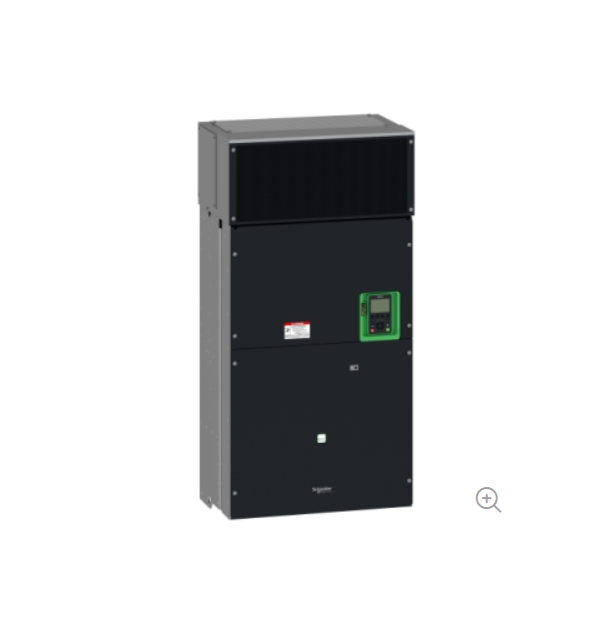

Schneider Electric ATV630C25N4, Değişken Hızlı Sürücü, Altivar Process ATV600, ATV630, 250 kW, 400 hp, 380 - 480 V, IP00
Ürün Kodu: ATV630C25N4
(0)
1.817.758,00 TL
690.748,26 TL
%62
Daha Fazla Hız Kontrol
Adet
KoleksiyonFiyat Alarmı
| Range of Product | Altivar Process ATV600 |
|---|---|
| Product Specific Application | Process and utilities |
| Product or Component Type | Variable speed drive |
| Variant | Standard version |
| Device short name | ATV630 |
| Mounting Mode | Wall mount |
| Communication Port Protocol | Modbus TCP Modbus serial Ethernet |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| [Us] rated supply voltage | 380...480 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 481.0 A |
| IP degree of protection | IP21 |
| Product destination | Asynchronous motors Synchronous motors |
| EMC filter | Integrated 164.04 ft (50 m) IEC 61800-3 category C3 |
| IP degree of protection | IP00IEC 61800-5-1 IP00IEC 60529 IP21 with kit VW3A9113)IEC 61800-5-1 IP21 with kit VW3A9113)IEC 60529 |
| Type of cooling | Forced convection |
| Supply frequency | 50...60 Hz - 5...5 % |
| Motor power kW | 250 kW normal duty) 220 kW heavy duty) |
| Maximum Horse Power Rating | 400 hp normal duty 300 hp heavy duty |
| Line current | 451 A 380 V normal duty) 366 A 480 V normal duty) 365 A 380 V heavy duty) 301 A 480 V heavy duty) |
| Continuous output current | 481 A 2.5 kHz normal duty 387 A 2.5 kHz heavy duty |
| Speed drive output frequency | 0.1…500 Hz |
| Safety function | STO (safe torque off) SIL 3 |
| Option card | Slot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink |
| Discrete input number | 8 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Discrete input type | DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) | |||||||||
| Discrete input logic | 16 preset speeds | |||||||||
| Discrete output number | 0 | |||||||||
| Discrete output type | Relay outputs R1A, R1B, R1C 250 V AC 3000 mA Relay outputs R1A, R1B, R1C 30 V DC 3000 mA Relay outputs R2A, R2C 250 V AC 5000 mA Relay outputs R2A, R2C 30 V DC 5000 mA Relay outputs R3A, R3C 250 V AC 5000 mA Relay outputs R3A, R3C 30 V DC 5000 mA | |||||||||
| Analogue input number | 3 | |||||||||
| Analogue input type | AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits | |||||||||
| Analogue output number | 2 | |||||||||
| Analogue output type | Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits Software-configurable current AQ1, AQ2 0...20 mA 10 bits Software-configurable current DQ-, DQ+ 30 V DC Software-configurable current DQ-, DQ+ 100 mA | |||||||||
| Relay output number | 3 | |||||||||
| Relay output type | Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 100000 cycles Configurable relay logic R3 sequence relay NO 100000 cycles | |||||||||
| Maximum switching current | Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC | |||||||||
| Minimum switching current | Relay output R1, R2, R3 5 mA 24 V DC | |||||||||
| Phase | 3 phase | |||||||||
| Physical interface | Ethernet 2-wire RS 485 | |||||||||
| Method of access | Slave Modbus TCP | |||||||||
| Transmission Rate | 10, 100 Mbits 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps | |||||||||
| Transmission frame | RTU | |||||||||
| Output voltage | <= power supply voltage | |||||||||
| Permissible temporary current boost | 1.1 x In 60 s normal duty) 1.5 x In 60 s heavy duty) | |||||||||
| Data format | 8 bits, configurable odd, even or no parity | |||||||||
| Type of polarization | No impedance | |||||||||
| Frequency resolution | Display unit 0.1 Hz Analog input 0.012/50 Hz | |||||||||
| Electrical connection | Control removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWG Line side screw terminal 4 x 185 mm² 3 x 350 kcmil Motor screw terminal 4 x 185 mm² 3 x 350 kcmil | |||||||||
| Connector type | RJ45 on the remote graphic terminal)Ethernet/Modbus TCP RJ45 on the remote graphic terminal)Modbus serial | |||||||||
| Exchange mode | Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP | |||||||||
| Number of addresses | 1…247 Modbus serial | |||||||||
| Supply | External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection | |||||||||
| Local signalling | 3 LEDs for local diagnostic 3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage | |||||||||
| Input compatibility | DI1...DI6 discrete input level 1 PLC IEC 61131-2 DI5, DI6 discrete input level 1 PLC IEC 65A-68 STOA, STOB discrete input level 1 PLC IEC 61131-2 | |||||||||
| Discrete input logic | Positive logic (source) DI1...DI8), < 5 V, > 11 V Negative logic (sink) DI1...DI8), > 16 V, < 10 V | |||||||||
| Sampling duration | 2 ms +/- 0.5 ms DI1...DI4) - discrete input 5 ms +/- 1 ms DI5, DI6) - discrete input 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input 10 ms +/- 1 ms AO1) - analog output | |||||||||
| Accuracy | +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output | |||||||||
| Linearity error | AI1, AI2, AI3 +/- 0.15 % of maximum value analog input AO1, AO2 +/- 0.2 % analog output | |||||||||
| Refresh time | Relay output R1, R2, R3)5 ms +/- 0.5 ms) | |||||||||
| Isolation | Between power and control terminals | |||||||||
| Discrete and process manufacturing | Building - HVAC compressor centrifugal Food and beverage processing other application Mining mineral and metal fan Mining mineral and metal pump Oil and gas fan Water and waste water other application Building - HVAC screw compressor Food and beverage processing pump Food and beverage processing fan Food and beverage processing atomization Oil and gas electro submersible pump (ESP) Oil and gas water injection pump Oil and gas jet fuel pump Oil and gas compressor for refinery Water and waste water centrifuge pump Water and waste water positive displacement pump Water and waste water electro submersible pump (ESP) Water and waste water screw pump Water and waste water lobe compressor Water and waste water screw compressor Water and waste water compressor centrifugal Water and waste water fan Water and waste water conveyor Water and waste water mixer | |||||||||
| Power range | 250…500 kW 380…440 V 3 phase 250…500 kW 480…500 V 3 phase | |||||||||
| Enclosure mounting | Wall mounted | |||||||||
| 4 quadrant operation possible | False | |||||||||
| Asynchronous motor control profile | Constant torque standard Optimized torque mode Variable torque standard | |||||||||
| Synchronous motor control profile | Permanent magnet motor Synchronous reluctance motor | |||||||||
| Maximum output frequency | 500 kHz | |||||||||
| Acceleration and deceleration ramps | Linear adjustable separately from 0.01...9999 s | |||||||||
| Motor slip compensation | Adjustable Can be suppressed Not available in permanent magnet motor law Automatic whatever the load | |||||||||
| Switching frequency | 2.5...8 kHz with derating factor 2...8 kHz adjustable | |||||||||
| Nominal switching frequency |
