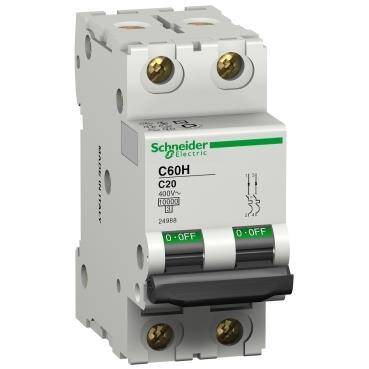

Schneider Electric 24981, C60 - circuit breaker - C60H - 2P - 1A - C curve
Ürün Kodu: 24981
(0)
2.184,71 TL
468,51 TL
%79
Daha Fazla Devre Kesiciler
Adet
KoleksiyonFiyat Alarmı
| Range of product | C60 |
|---|---|
| Range | Multi9 |
| product name | C60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | C60H |
| Device application | Distribution |
| Poles description | 2P |
| Number of protected poles | 2 |
| Neutral position | Left |
| [In] rated current | 1 A at 30 °C |
| network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 400...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 125 V DC 2P conforming to EN/IEC 60947-2 30 kA Icu at 230...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 440 V AC 50/60 Hz 230...240 V AC 50/60 Hz 400...415 V AC 50/60 Hz |
| Magnetic tripping limit | 5...10 x In |
| [Ics] rated service breaking capacity | 15 kA conforming to EN/IEC 60947-2 - 12...440 V AC 50/60 Hz 7.5 kA conforming to EN/IEC 60947-2 - 60 V AC 50/60 Hz 5 kA conforming to EN/IEC 60947-2 AC 50/60 Hz |
| Limitation class | 3 conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | YES |
| 9 mm pitches | 4 |
| Height | 81 mm |
| Width | 36 mm |
| Depth | 73 mm |
| Product weight | 0.24 kg |
| Mechanical durability | 20000 cycles |
| Connections - terminals | Tunnel type terminals16 mm² flexible Tunnel type terminals25 mm² rigid |
| Wire stripping length | 14 mm |
| Earth-leakage protection | Separate block |
| Tropicalisation | 2 conforming to IEC 60068-1 |
|---|---|
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 3.6 cm |
| Package 1 Length | 7.3 cm |
| Package 1 Weight | 0.22 kg |
| Warranty | 18 months |
|---|
Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 3303430249818 |
| Tedarikçi Ürün Kodu | : | 24981 |
