Gelince Sizi Arayalım| Range of product | PRD |
|---|---|
| range of product | Multi9 |

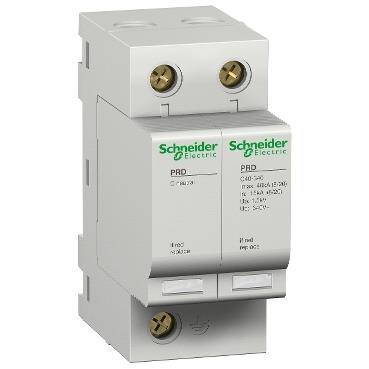

| product name | Multi9 PRD |
| Product or component type | Surge arrester with pluggable cartridge |
| Device short name | PRD40r |
| Device application | Distribution |
| Quality labels | KEMA-KEUR NF OVE |
| Poles description | 1P + N |
| Remote signalling | With |
| Signal contacts composition | 1 SD (1 C/O) |
| Surge arrester type | Electrical distribution network |
| Earthing system | TN-S TT |
| Surge arrester class type | Type 2 |
|---|---|
| Surge arrester technology | MOV + GDT |
| [Ue] rated operational voltage | 230 V AC (+/- 10 %) at 50/60 Hz |
| [In] nominal discharge current | Common mode: 15 kA (L/PE) Common mode: 15 kA (N/PE) Differential mode: 15 kA (L/N) |
| [Imax] maximum discharge current | Common mode: 40 kA L/PE Common mode: 40 kA N/PE Differential mode: 40 kA L/N |
| [Uc] maximum continuous operating voltage | Common mode: 340 V L/PE Common mode: 260 V N/PE Differential mode: 340 V L/N |
| Maximum [Up] voltage protection level | Common mode <1.4 kV type 2 N/PE Differential mode <1.4 kV type 2 L/N |
| Disconnector device type | Associated circuit breaker 40 A - Icu 10 kA Associated circuit breaker 40 A - Icu 15 kA Associated circuit breaker 40 A - Icu 25 kA |
| Signalling circuit voltage | 0.25 A/250 V AC 50/60 Hz |
| Mounting mode | Clip-on (DIN rail) |
| 9 mm pitches | 4 |
| Height | 81 mm |
| Width | 36 mm |
| Depth | 69 mm |
| Colour | Grey (RAL 7035) |
| Connections - terminals | Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm² |
| Tightening torque | 2.5 N.m |
| Compatibility code | PRD40r |
| IK degree of protection | IK03 conforming to IEC 62262 |
|---|---|
| Relative humidity | 5…90 % |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.2 cm |
| Package 1 Width | 4.2 cm |
| Package 1 Length | 11.7 cm |
| Package 1 Weight | 0.211 kg |
| Warranty | 18 months |
|---|
