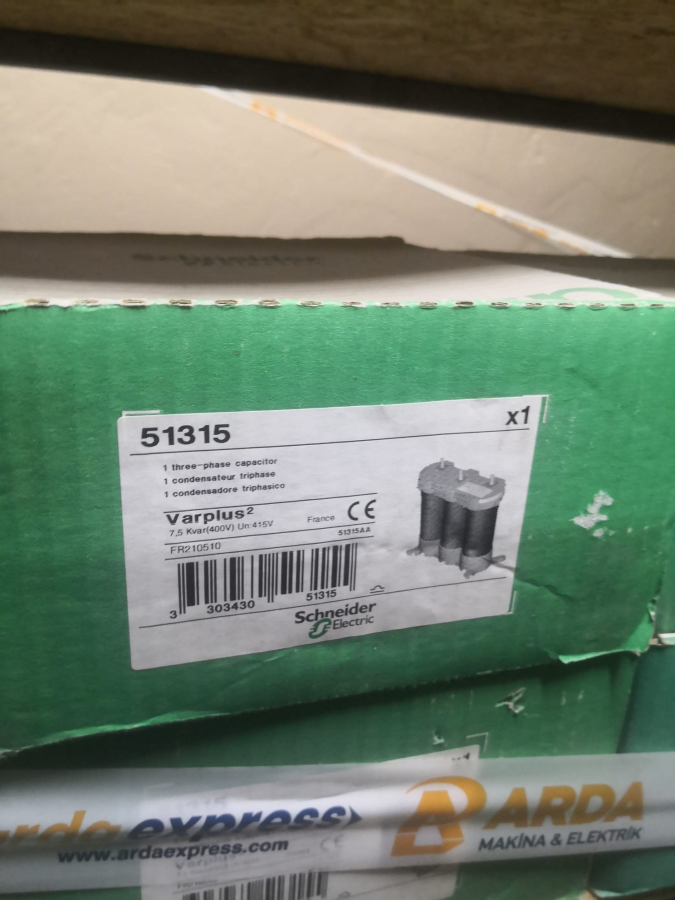

Schneider Electric 51315, Kondansatör - Varplus2 - 400/415V - hafif kirlenmiş şebeke - 7,5kvar

Name: Schneider Electric 51315, Kondansatör - Varplus2 - 400/415V - hafif kirlenmiş şebeke - 7,5kvar
Brand: Schneider
SKU: 51315
Price: 3012.81 TRY
Availability: InStock

Ürün Kodu: 51315

4.649,64 TL

3.012,81 TL

%35

Daha Fazla Devre Kesiciler

Adet

KoleksiyonFiyat Alarmı

Main
Range of product	Varplus²
Device short name	capacitor
Product or component type	Capacitor
Network frequency	50 Hz 60 Hz
Capacitor technology	3P capacitor
Reactive power rating	9 kvar for 400 V AC 60 Hz slightly polluted 9 kvar for 415 V AC 60 Hz slightly polluted 7.5 kvar for 415 V AC 50 Hz slightly polluted 10.5 kvar for 525 V AC 50 Hz slightly polluted 7.75 kvar for 400 V AC 50 Hz slightly polluted
Network rated voltage	400 V AC 50 Hz 415 V AC 50 Hz 400 V AC 60 Hz 415 V AC 60 Hz
Network pollution level	Slightly polluted (0…15 %) at 525 V 50 Hz Slightly polluted (0…15 %) at 400 V 50/60 Hz Slightly polluted (0…15 %) at 415 V 50/60 Hz

Complementary
Capacitor protection	High current fault protection by HRC cartridge Low current fault protection by combination of single phase internal overpressure device with the HRC fuse
Capacitor voltage	415 V AC, 50 Hz 415 V AC, 60 Hz 550 V AC, 50 Hz
Power losses	< 0.5 W/kVAr discharge resistors included
Capacitance tolerance	- 5 % to 10 %
Rated short-duration power frequency withstand voltage	4 kV 50 Hz 1 minute 4 kV 60 Hz 1 minute
[Uimp] rated impulse withstand voltage	15 kV 1.2/50 µs
Voltage test	2.15 x Un ( 10 s )
[Ures] residual voltage	50 V 1 minute with internally fitted discharge resistors
Maximum permissible voltage	1.1 x Un (8 hours over 24 hours) conforming to IEC 60831
[Imp] maximum permanent current	1.3 x I1 permanently conforming to IEC 60831
Type of installation	Indoor installation
Colour code	Base: RAL 7030 Cover: RAL 7030 Elements: RAL 9005
Connections - terminals	M8 rods3 cable(s)
Earth circuit	Not mandatory
Height	229.5 mm
Width	220.5 mm
Depth	97 mm
Product weight	2.1 kg

Environment
Standards	IEC 60831-1 UL 810 IEC 60831-2 CSA C22.2
Product certifications	CSA UL
IP degree of protection	IP00 without cover IP20 with protective cover IP42 with protective cover and cable glands
Temperature class	D
Ambient air temperature for operation	-25…55 °C
Average ambient air temperature for operation	35 °C (average over 1 year) 45 °C (average over 24 hours)
