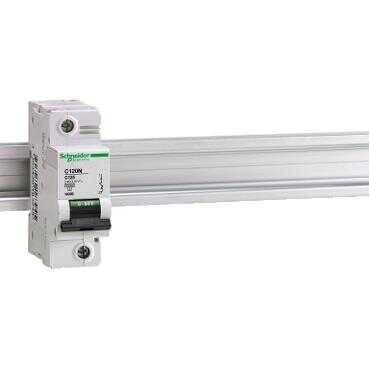

Gelince Sizi Arayalım| Range of product | C120 |
|---|---|
| Range | Multi9 |
| product name | C120 |
| Product or component type | Miniature circuit-breaker |
| Device short name | C120N |
| Device application | Distribution |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 100 A at 30 °C |
| network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | D |
| Breaking capacity | 3 kA Icu at 400...415 V AC 50/60 Hz IT conforming to EN/IEC 60947-2 10000 A Icn at 230...400 V AC 50/60 Hz conforming to IEC 60898-1 20 kA Icu at 130 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 230...400 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 12 V DC conforming to EN/IEC 60947-2 15 kA Icu at 125 V DC conforming to EN/IEC 60947-2 10 kA Icu at <= 144 V DC conforming to EN/IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 230...400 V AC 50/60 Hz 400...415 V AC 50/60 Hz 130 V AC 50/60 Hz <= 144 V DC 12 V DC |
| Magnetic tripping limit | 10...14 x In |
| [Ics] rated service breaking capacity | 7500 A 75 % conforming to IEC 60898-1 - 230...400 V AC 50/60 Hz 15 kA 75 % conforming to EN/IEC 60947-2 - 130 V AC 50/60 Hz 7.5 kA 75 % conforming to EN/IEC 60947-2 - 230...400 V AC 50/60 Hz 2.25 kA 75 % conforming to EN/IEC 60947-2 - 400...415 V AC 50/60 Hz 10 kA 100 % conforming to EN/IEC 60947-2 - 24/48 V DC 10 kA 100 % conforming to EN/IEC 60947-2 - 125 V DC |
| Limitation class | 3 conforming to IEC 60898-1 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | NO |
| 9 mm pitches | 3 |
| Height | 81 mm |
| Width | 27 mm |
| Depth | 73 mm |
| Net weight | 0.205 kg |
| Mechanical durability | 20000 cycles |
| Electrical durability | 5000 cycles conforming to IEC 60947-2 |
| Connections - terminals | Tunnel type terminals1…50 mm² rigid Tunnel type terminals1.5…35 mm² flexible |
| Wire stripping length | 15 mm |
| Tightening torque | 3.5 N.m |
| Earth-leakage protection | Without |
| Standards | EN/IEC 60947-2 IEC 60898-1 |
|---|---|
| Product certifications | GOST |
| Quality labels | NF |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60947-2 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.6 cm |
| Package 1 Width | 7 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 0.192 kg |
| Warranty | 18 months |
|---|
