Gelince Sizi Arayalım| Range of product | NS100...250 NR100...250 |
|---|---|
| Range | ComPact |

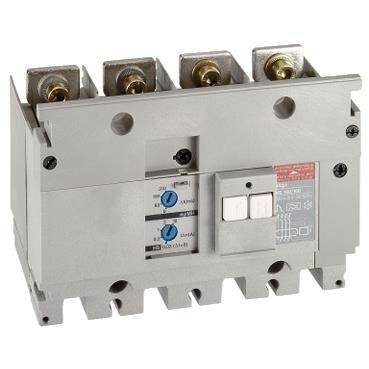

| Product or component type | Earth leakage add-on block |
| Device application | Wiring |
| Range compatibility | ComPact Compact NR circuit breaker ComPact ComPact NS circuit breaker |
| Poles description | 4P |
| Protected poles description | 4t |
| [In] rated current | 250 A |
| Earth-leakage add-on module name | MH |
| Earth-leakage protection class | Class A |
| Residual earth-leakage sensitity adjustment type | Adjustable 5 settings |
| [IΔn] residual earth-leakage sensitive adjustment | 0.03…10 A |
| Residual earth-leakage time delay adjustment type | Adjustable |
| [Δt] residual earth-leakage time delay adjustment | 150 ms 0 ms 310 ms 60 ms |
| Network type | AC |
|---|---|
| Network frequency | 50/60 Hz |
| Mounting support | DIN rail |
| Electrical connection to mcb | By screws |
| [Ue] rated operational voltage | 220...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Earth-leakage protection | With |
| Maximum breaking time | 800 ms |
| Overvoltage category | Class II |
| Height | 140 mm |
| Width | 236 mm |
| Depth | 86 mm |
| Net weight | 3.4 kg |
| Electrical shock protection class | Class II |
|---|---|
| Standards | IEC 60947-2 |
| Product certifications | LCIE ASTA KEMA ASEFA |
| Warranty | 18 months |
|---|
