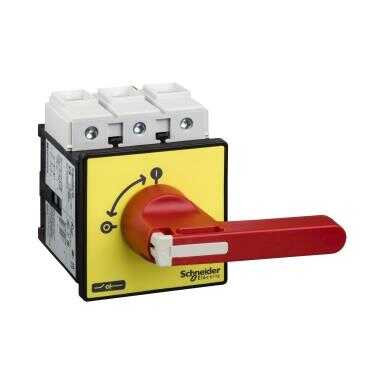

| Device Composition |
Kol
Anahtar |
| Mounting Support |
Kol: kapı
Anahtar: kapı |
| Mounting Method |
4 vidayla için kol |
| Performance Level |
Yüksek performans |
| Number of Poles |
3P |
| Contact Type and Composition |
3 NA |
| [Ue] IEC Rated Operational Voltage |
690 V AC 50/60 Hz |
| IEC Rated Operational Power in W |
30 kW -de 230...240 V (AC-3)
37 kW -de 400...415 V (AC-3)
37 kW -de 690 V (AC-3)
45 kW -de 500 V (AC-3)
45 kW -de 690 V (AC-23A)
55 kW -de 500 V (AC-23A)
30 kW -de 230...240 V (AC-23A)
45 kW -de 400...415 V (AC-23A) |
| [Ie] Rated Operational Current |
83 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current |
175 A |
| [Ithe] Conventional Enclosed Thermal Current |
140 A |
| Making Capacity ( I Rms) |
1750 A -de 400 V AC-21A
1750 A -de 400 V AC-22A
1750 A -de 400 V AC-23A |
| Breaking Capacity |
1400 A -de 400 V (AC-21A)
1400 A -de 400 V (AC-22A)
1400 A -de 400 V (AC-23A) |
| Rated Conditional Short Circuit Current |
10 kA -de 400 V - ilgili sigorta 200 A aM
10 kA -de 400 V - ilgili sigorta 200 A gG |
| [Icm] Rated Short Circuit Making Capacity |
2,8 kA -de 400 V Itepe'de |
| [Icw] Rated Short Time Withstand Current |
2100 A -de 400 V 1 s |
| [Uimp] Rated Impulse Withstand Voltage |
8 kV |
| Suitability for Isolation |
Evet |
| Network Type |
AC
DC |
| Intermittent Duty Class |
30 |
| Control Type |
Döner kol |
| Rotary Handle Mounting Style |
Doğrudan |
| Handle Color |
Kırmızı |
| Handle Front Plate Color |
Sarı |
| Rotary Handle Padlocking |
1 ila 3 asmalı kilit 4…8 mm |
| Marking |
0 - 1 |
| Mechanical Durability |
30000 cycles |
| Electrical Durability |
30000 cycles AC-21
30000 cycles DC-1...5 |
| IEC Terminal Connection |
Güç devresi: vida kelepçesi terminalleri kablo 95 mm² - kablo sertligi: katı
Güç devresi: vida kelepçesi terminalleri kablo 70 mm² - kablo sertligi: esnek - Kablo uçlu |
| Tightening Torque |
Güç devresi: 22,6 N.m - üzerinde vida kelepçesi terminalleri |
| Base Dimension |
90 x 90 mm |
| Height |
125 mm |
| Width |
90 mm |
| Product Weight |
1,2 kg |
