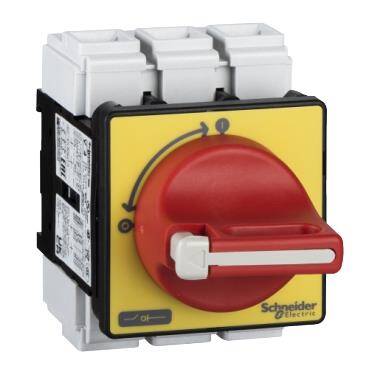

| Product Name | TeSys VARIO |
| Device Short Name | VCF |
| Product Type | Acil durdurma yük ayırıcısı |
| Device Composition | Anahtar Kol |
|---|---|
| Mounting Support | Kol: kapı Anahtar: kapı |
| Mounting Method | 4 vidayla için kol |
| Performance Level | Yüksek performans |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NA |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 18,5 kW -de 690 V (AC-3) 15 kW -de 230...240 V (AC-3) 22 kW -de 400...415 V (AC-3) 30 kW -de 500 V (AC-3) 30 kW -de 690 V (AC-23A) 37 kW -de 500 V (AC-23A) 18,5 kW -de 230...240 V (AC-23A) 30 kW -de 400...415 V (AC-23A) |
| [Ie] Rated Operational Current | 57 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 80 A |
| [Ithe] Conventional Enclosed Thermal Current | 63 A |
| Making Capacity ( I Rms) | 800 A -de 400 V AC-21A 800 A -de 400 V AC-22A 800 A -de 400 V AC-23A |
| Breaking Capacity | 640 A -de 400 V (AC-21A) 640 A -de 400 V (AC-22A) 640 A -de 400 V (AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA -de 400 V - ilgili sigorta 80 A aM 10 kA -de 400 V - ilgili sigorta 80 A gG |
| [Icm] Rated Short Circuit Making Capacity | 2,1 kA -de 400 V Itepe'de |
| [Icw] Rated Short Time Withstand Current | 960 A -de 400 V 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Suitability for Isolation | Evet |
| Network Type | DC AC |
| Intermittent Duty Class | 30 |
| Control Type | Döner kol |
| Rotary Handle Mounting Style | Doğrudan |
| Handle Color | Kırmızı |
| Handle Front Plate Color | Sarı |
| Rotary Handle Padlocking | 1 ila 3 asmalı kilit 4…8 mm |
| Marking | 0 - 1 |
| Mechanical Durability | 30000 cycles |
| Electrical Durability | 30000 cycles AC-21 30000 cycles DC-1...5 |
| IEC Terminal Connection | Güç devresi: vida kelepçesi terminalleri kablo 25 mm² - kablo sertligi: katı Güç devresi: vida kelepçesi terminalleri kablo 16 mm² - kablo sertligi: esnek - Kablo uçlu |
| Tightening Torque | Güç devresi: 4 N.m - üzerinde vida kelepçesi terminalleri |
| Base Dimension | 60 x 60 mm |
| Height | 83 mm |
| Width | 60 mm |
| Product Weight | 0,56 kg |
| Standards | IEC 60947-3 |
|---|---|
| Product Certifications | CCC GL UL CSA UKCA |
| Degree of Protection | IP20 'e uygunIEC 60529 IP65 |
| Protective Treatment | TC |
| Mechanical Robustness | Titreşimler 10...150 Hz (1 gn) 'e uygunIEC 60068-2-6 Şoklar 11 ms (30 Gn) 'e uygunIEC 60068-2-27 |
| Ambient Air Temperature for Operation | -20…50 °C |
| Fire Resistance | 960 °C 'e uygunIEC 60695-2-1 |
| Compatibility Code | Ana yük ayırıcı |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8,0 cm |
| Package 1 Width | 8,5 cm |
| Package 1 Length | 12,0 cm |
| Package 1 Weight | 346,0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 15,0 cm |
| Package 2 Width | 30,0 cm |
| Package 2 Length | 40,0 cm |
| Package 2 Weight | 4,414 kg |
| Garanti | 18 months |
|---|
