Ana
| Range |
TeSys |
| Product Name |

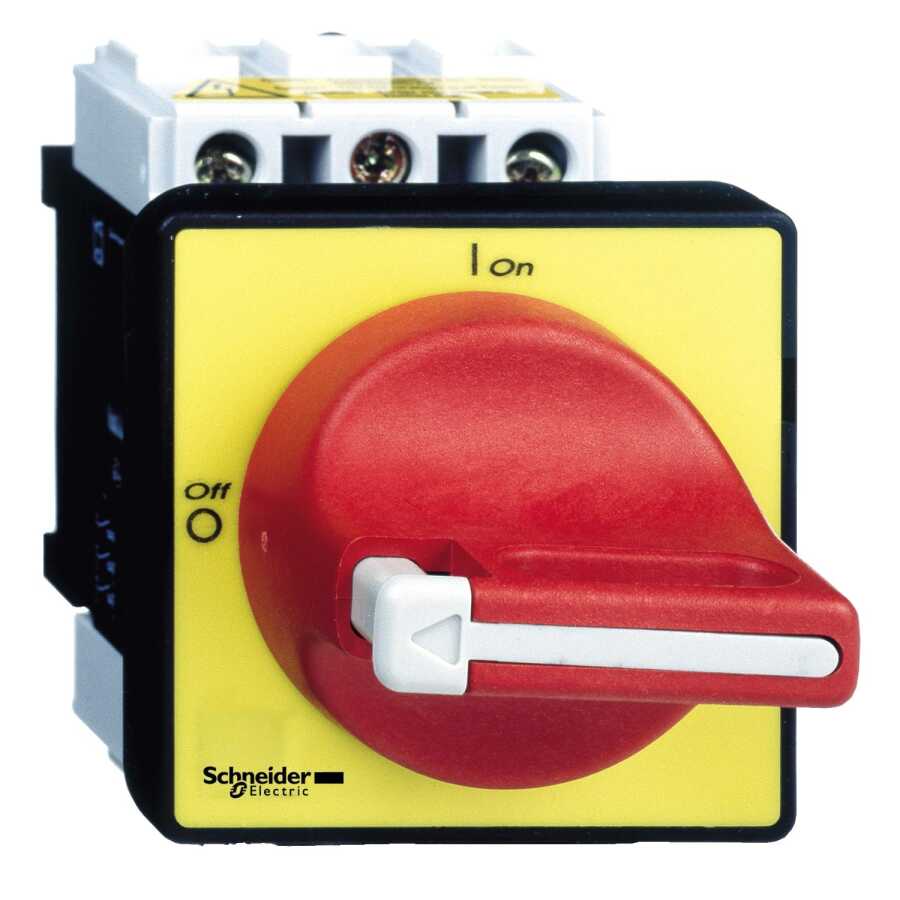

TeSys VARIO |
| Device Short Name |
VCF |
| Product Type |
Acil durdurma yük ayırıcısı |
Tamamlayıcı
| Device Composition |
Anahtar
Kol |
| Mounting Support |
Kol: kapı
Anahtar: kapı |
| Mounting Method |
4 vidayla için kol |
| Performance Level |
Yüksek performans |
| Number of Poles |
3P |
| Contact Type and Composition |
3 NA |
| [Ue] IEC Rated Operational Voltage |
690 V AC 50/60 Hz |
| IEC Rated Operational Power in W |
11 kW -de 500 V (AC-23A)
15 kW -de 690 V (AC-23A)
7,5 kW -de 500 V (AC-3)
7,5 kW -de 690 V (AC-3)
1,5 kW -de 230...240 V (AC-3)
5,5 kW -de 230...240 V (AC-23A)
11 kW -de 400...415 V (AC-23A)
7,5 kW -de 400...415 V (AC-3) |
| [Ie] Rated Operational Current |
21,8 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current |
32 A |
| [Ithe] Conventional Enclosed Thermal Current |
25 A |
| Making Capacity ( I Rms) |
320 A -de 400 V AC-21A
320 A -de 400 V AC-22A
320 A -de 400 V AC-23A |
| Breaking Capacity |
250 A -de 400 V (AC-21A)
250 A -de 400 V (AC-22A)
250 A -de 400 V (AC-23A) |
| Rated Conditional Short Circuit Current |
10 kA -de 400 V - ilgili sigorta 35 A aM
10 kA -de 400 V - ilgili sigorta 35 A gG |
| [Icm] Rated Short Circuit Making Capacity |
1 kA -de 400 V Itepe'de |
| [Icw] Rated Short Time Withstand Current |
384 A -de 400 V 1 s |
| [Uimp] Rated Impulse Withstand Voltage |
8 kV |
| Suitability for Isolation |
Evet |
| Network Type |
DC
AC |
| Intermittent Duty Class |
30 |
| Control Type |
Döner kol |
| Rotary Handle Mounting Style |
Doğrudan |
| Handle Color |
Kırmızı |
| Handle Front Plate Color |
Sarı |
| Rotary Handle Padlocking |
1 ila 3 asmalı kilit 4…8 mm |
| Marking |
0 - 1 |
| Mechanical Durability |
100000 cycles |
| Electrical Durability |
100000 cycles AC-21
30000 cycles DC-1...5 |
| IEC Terminal Connection |
Güç devresi: vida kelepçesi terminalleri kablo 10 mm² - kablo sertligi: katı
Güç devresi: vida kelepçesi terminalleri kablo 6 mm² - kablo sertligi: esnek - Kablo uçlu |
| Tightening Torque |
Güç devresi: 2,1 N.m - üzerinde vida kelepçesi terminalleri |
| Base Dimension |
60 x 60 mm |
| Height |
74 mm |
| Width |
60 mm |
| Product Weight |
0,25 kg |
Ortam
| Standards |
IEC 60947-3 |
| Product Certifications |
UL
CSA
CCC
GL
UKCA |
| Degree of Protection |
IP20 'e uygunIEC 60529
IP65 |
| Protective Treatment |
TC |
| Mechanical Robustness |
Titreşimler 10...150 Hz (1 gn) 'e uygunIEC 60068-2-6
Şoklar 11 ms (30 Gn) 'e uygunIEC 60068-2-27 |
| Ambient Air Temperature for Operation |
-20…50 °C |
| Fire Resistance |
960 °C 'e uygunIEC 60695-2-1 |
| Compatibility Code |
Ana yük ayırıcı |
Paketleme üniteleri
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
8,000 cm |
| Package 1 Width |
8,500 cm |
| Package 1 Length |
12,000 cm |
| Package 1 Weight |
219,000 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
24 |
| Package 2 Height |
30,000 cm |
| Package 2 Width |
30,000 cm |
| Package 2 Length |
40,000 cm |
| Package 2 Weight |
5,642 kg |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
192 |
| Package 3 Height |
75,000 cm |
| Package 3 Width |
80,000 cm |
| Package 3 Length |
60,000 cm |
| Package 3 Weight |
53,136 kg |
Sözleşme garantisi
| Garanti |
18 months |
