Gelince Sizi Arayalım| range | TeSys |
|---|---|

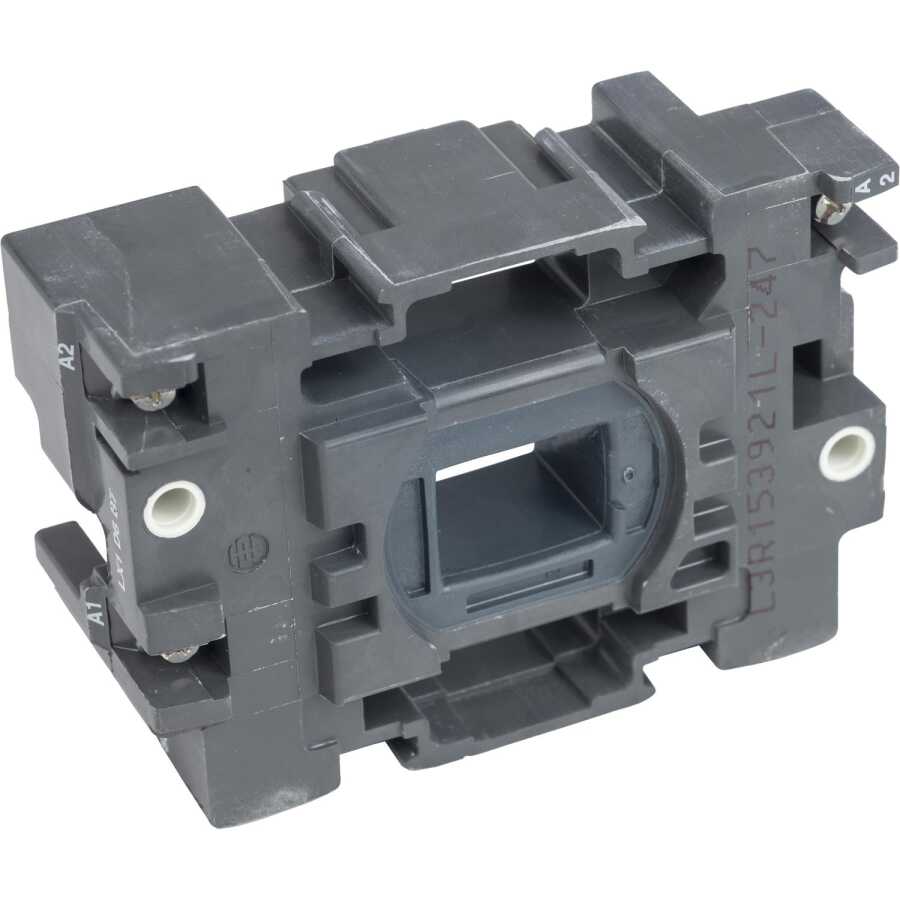

| product or component type | Contactor coil |
| device short name | LX1D6 |
| control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| average resistance | 1.22 Ohm at 20 °C |
| inductance of closed circuit | 0.08 H |
| product compatibility | LC1D40 LC1D50 LC1D65...D95 |
| mechanical durability | 4 Mcycles |
| maximum operating rate | 3600 cyc/h 60 °C |
| coil technology | Without built-in suppressor module |
|---|---|
| control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C) Operational: 0.8...1.1 Uc at 50 Hz (at <55 °C) Operational: 0.85...1.1 Uc at 60 Hz (at <55 °C) |
| inrush power in VA | 245 VA 60 Hz cos phi 0.75 (at 20 °C) 245 VA 50 Hz cos phi 0.75 (at 20 °C) |
| hold-in power consumption in VA | 26 VA 60 Hz cos phi 0.3 (at 20 °C) 26 VA 50 Hz cos phi 0.3 (at 20 °C) |
| heat dissipation | 6…10 W at 50/60 Hz |
| ambient air temperature for operation | -5…60 °C |
|---|---|
| net weight | 0.28 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 317.0 g |
| Package 1 Height | 7.0 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 16.0 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 16 |
| Package 2 Weight | 5.506 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
