Gelince Sizi Arayalım| range of product | Harmony XVR |
|---|---|

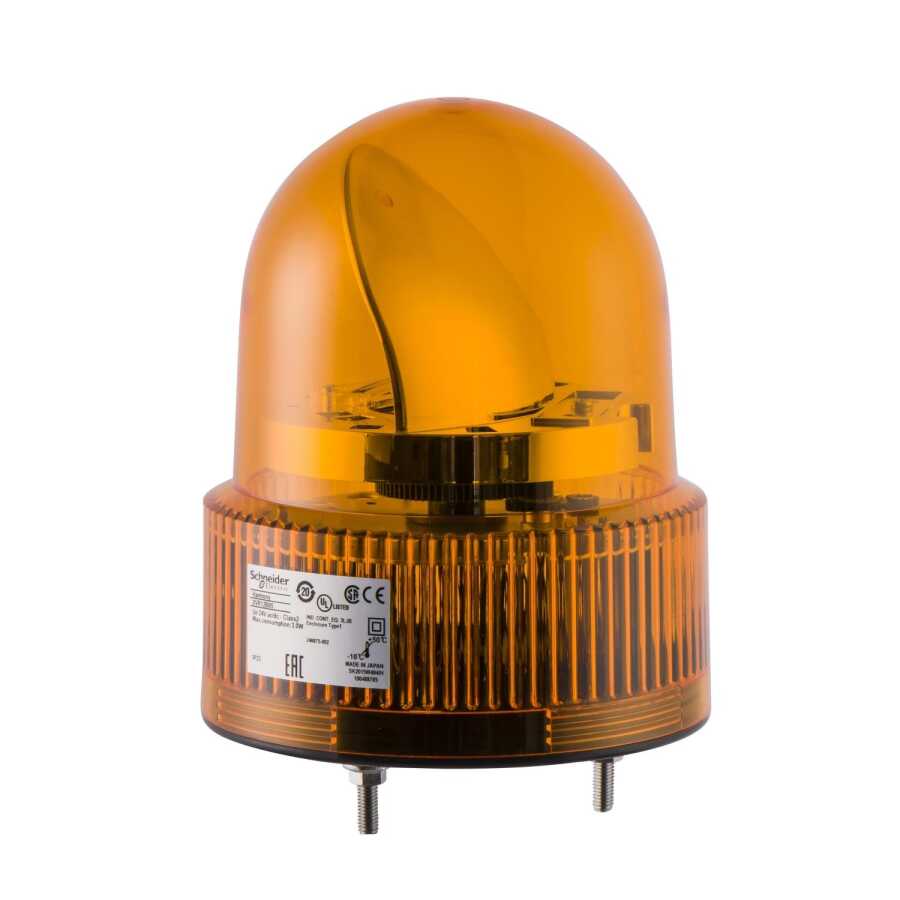

| product or component type | Prewired rotating mirror beacon |
| sound signalling | Without |
| device short name | XVR |
| mounting diameter | 120 mm |
| IP degree of protection | IP23 conforming to IEC 60529 |
| [Us] rated supply voltage | 24 V AC/DC |
| light source | High luminosity LED, orange |
| material | ABS (acrylonitrile butadiene-styrene): body part AS: globe |
|---|---|
| CAD overall width | 120 mm |
| CAD overall depth | 120 mm |
| net weight | 0.5 kg |
| marking | CE |
| product mounting | By 3 M5 screws |
| supply voltage limits | 19…30 V DC 21.6…26.4 V AC |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| current consumption | 125 mA |
| flashing frequency | 2.3 Hz |
| clamping connection capacity | 0.83 mm² |
| AWG gauge | AWG 18 |
| cable length | 400 mm |
| standards | EN 61000-6-2 EN 61000-6-4 |
|---|---|
| protective treatment | TC |
| ambient air temperature for storage | -35…70 °C |
| ambient air temperature for operation | -10…50 °C |
| electrical shock protection class | Class II conforming to IEC 61140 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 637 g |
| Package 1 Height | 14 cm |
| Package 1 width | 14.2 cm |
| Package 1 Length | 19.5 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 6.436 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 40 cm |
| Package 2 Length | 60 cm |
| Package 3 Height | 30.0 cm |
| Warranty | 18 months |
|---|
