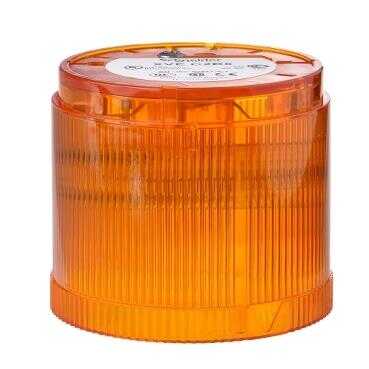

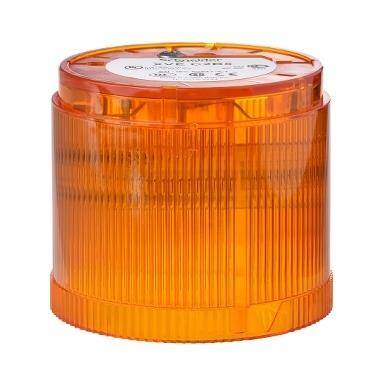

Gelince Sizi Arayalım| Range of product | Harmony XVE Optimum |
|---|---|
| Product or component type | Indicator bank |
| Beacon or indicator bank unit type | Illuminated unit |
| Signalling type | Flashing |
| Component name | XVE |
| Light source | Integral LED, orange |
| Bulb type | LED |
| [Us] rated supply voltage | 24 V AC/DC |
| Mounting diameter | 70 mm |
|---|---|
| Assembly style | Customer assembly |
| Connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| Marking | CE |
| Short-circuit protection | 0.63 A |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| Nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| Current consumption | < 30 mA |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Luminance | 800 cd/m² |
| Flashing frequency | 1 Hz |
| CAD overall width | 70 mm |
| CAD overall height | 52 mm |
| CAD overall depth | 70 mm |
| Net weight | 0.077 kg |
| Standards | EN/IEC 60947-1 EN/IEC 60947-5-1 |
|---|---|
| Product certifications | CCC CSA UL |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Electrical shock protection class | Class I aluminium tube mounting conforming to IEC 61140 Class I plastic tube mounting conforming to IEC 61140 |
| Protective treatment | TC |
| IP degree of protection | IP40 any position except vertical position conforming to IEC 60529 IP42 vertical position conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6 cm |
| Package 1 Width | 7 cm |
| Package 1 Length | 7 cm |
| Package 1 Weight | 75 g |
| Warranty | 12 months |
|---|
