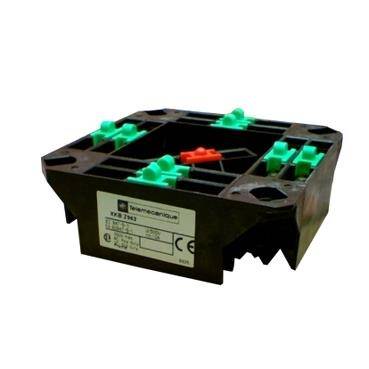

Gelince Sizi Arayalım| Product or component type | Controllers separate parts |
|---|---|
| Accessory / separate part category | Control accessory |
| Product specific application | Light hoisting applications |
| Product compatibility | XKBZ916 XKBZ917 XKBZ915 |
| Accessory / separate part type | Contacts block |
| Accessory / separate part specific characteristic | For use with built-in push-button handle For use with Dead man’s handle |
| Contact block per direction [control circuit] | 1 zero (center) position 4 per movement |
|---|---|
| Electrical connection | Screw clamp terminal, clamping capacity: 1 x 0.5...1 x 1.5 mm² Screw clamp terminal, clamping capacity: 1 x 0.5...1 x 2.5 mm² |
| Enclosure/cubicle description | Monobloc |
| Contacts type and composition | 1 NO 8 NO |
| Contact operation | Slow-break Double-break |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 337-1 10 A conforming to NF C 63-140 10 A conforming to VDE 0660 10 A conforming to CSA C22.2 No 14 |
| [Ui] rated insulation voltage | 500 V AC/DC conforming to IEC 158-1 500 V AC/DC conforming to NF C 20-040 500 V AC/DC conforming to VDE 0110 |
| Maximum resistance across terminals | 25 mOhm at 1 A conforming to NF C 93-050 |
| Positive opening | With |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 337-1B 10 A cartridge fuse type gG conforming to VDE 0660 part 2 |
| Electrical durability | 1000000 cycles DC inductive load at 120 V, power broken = 75 conforming to IEC 337-1 DC-11, operating rate <60 cyc/mn 0.5 1000000 cycles DC inductive load at 24 V, power broken = 90 conforming to IEC 337-1 DC-11, operating rate <60 cyc/mn 0.5 1000000 cycles DC inductive load at 48 V, power broken = 90 conforming to IEC 337-1 DC-11, operating rate <60 cyc/mn 0.5 |
| Net weight | 0.185 kg |
| Standards | CENELEC EN 50013 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 3.2 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 170.0 g |
| Warranty | 12 months |
|---|
