Main
| Range of product |
Harmony XB6 |
| Product or component type |

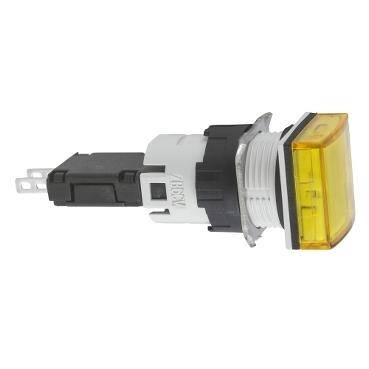

Complete pilot light |
| Device short name |
XB6 |
| Bezel material |
Plastic |
| Mounting diameter |
16 mm |
| Sale per indivisible quantity |
1 |
| Shape of signaling unit head |
Square |
| Cap/operator or lens colour |
Yellow |
| light source |
LED |
| bulb base |
Integral LED |
| Light block supply |
Direct |
| [Us] rated supply voltage |
12...24 V AC/DC |
Complementary
| Height |
18 mm |
| Width |
18 mm |
| Depth |
57 mm |
| Terminals description ISO n°1 |
(+ -)PL |
| Net weight |
0.015 kg |
| Operating position |
Any position |
| Connections - terminals |
Faston connectors, connection size: 2.8 x 0.5 mm |
| [Ui] rated insulation voltage |
250 V (pollution degree 2) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage |
4 kV conforming to EN/IEC 60947-1 |
| Signalling type |
Steady |
| Supply voltage limits |
6…30 V AC/DC |
| Current consumption |
15 mA |
| Surge withstand |
1 kV direct contact conforming to IEC 61000-4-5
2 kV in free air conforming to IEC 61000-4-5 |
Environment
| Protective treatment |
TC |
| Ambient air temperature for storage |
-40…70 °C |
| Ambient air temperature for operation |
-25…70 °C |
| Electrical shock protection class |
Class II conforming to IEC 61140 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| NEMA degree of protection |
NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94 |
| Standards |
JIS C8201-5-1
EN/IEC 60947-5-5
EN/IEC 60947-1
UL 508
JIS C 852
CSA C22.2 No 14
EN/IEC 60947-5-1
JIS C8201-1 |
| Product certifications |
CSA
UL
GOST
CCC |
| Vibration resistance |
+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients |
2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields |
10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge |
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission |
Class B conforming to EN 55011 |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.0 cm |
| Package 1 Width |
11.0 cm |
| Package 1 Length |
16.0 cm |
| Package 1 Weight |
11.0 g |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
60 |
| Package 2 Height |
15.0 cm |
| Package 2 Width |
15.0 cm |
| Package 2 Length |
40.0 cm |
| Package 2 Weight |
883.0 g |
Contractual warranty
| Warranty |
18 months |
