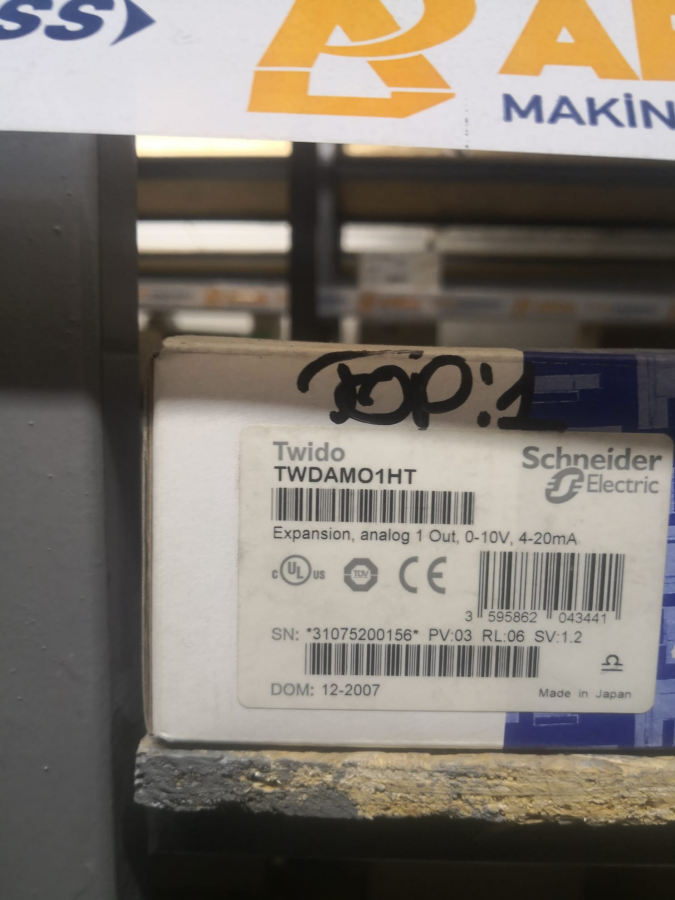

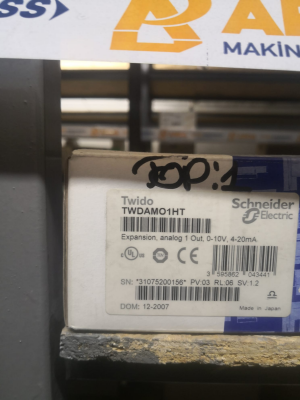

Schneider Electric TWDAMO1HT, Twido analog çıkış modülü - 24 V DC besleme - 1 çıkış - 0-10V, 4-20 mA - 1

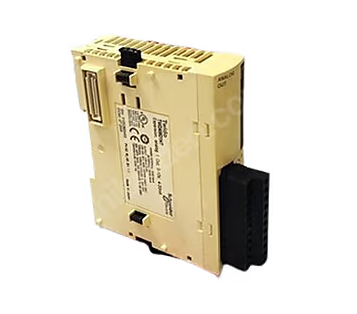

Schneider Electric TWDAMO1HT, Twido analog çıkış modülü - 24 V DC besleme - 1 çıkış - 0-10V, 4-20 mA - 2

Schneider

Schneider Electric TWDAMO1HT, Twido analog çıkış modülü - 24 V DC besleme - 1 çıkış - 0-10V, 4-20 mA

Name: Schneider Electric TWDAMO1HT, Twido analog çıkış modülü - 24 V DC besleme - 1 çıkış - 0-10V, 4-20 mA
Brand: Schneider
SKU: TWDAMO1HT
Price: 3604.22 TRY
Availability: InStock

Ürün Kodu: TWDAMO1HT

(0)

8.921,06 TL

3.604,22 TL

%60

Daha Fazla Modül

Adet

KoleksiyonFiyat Alarmı

Main
Range of product	Twido
Product or component type	Analogue output module
Analogue output number	1
Analogue output type	Current: 4...20 mA Voltage: 0...10 V
Analogue output resolution	12 bits
I/O connection	Removable screw terminal block

Complementary
LSB value	2.5 mV voltage 4 µA current
load type	Resistive
Load impedance ohmic	<= 300 Ohm current >= 2000 Ohm voltage
Stabilisation time	20 ms
Conversion time	20 ms + 1 controller cycle time
Measurement error	+/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C +/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C
Temperature coefficient	+/-0.015 %FS/°C, analogue output type: current +/-0.015 %FS/°C, analogue output type: voltage
Repeat accuracy	+/-0.5 %FS
Non-linearity	+/- 0.2 %FS, analogue output type: current +/- 0.2 %FS, analogue output type: voltage
Output error	+/- 1 %FS
Output ripple	<= 1 LSB
Total error	+/-1 %FS, analogue output type: current +/-1 %FS, analogue output type: voltage
Type of cable	Shielded twisted pair
Insulation between channel and internal logic	Photocoupler
Supply	External supply
[Us] rated supply voltage	24 V DC
Supply voltage limits	20.4…28.8 V
Current consumption	40 mA at 24 V DC 50 mA at 5 V DC
Marking	CE
Product weight	0.085 kg

Environment
Dielectric strength	500 V between the outputs and the supply circuit
Product certifications	CSA UL
IP degree of protection	IP20
Ambient air temperature for operation	0…55 °C
Ambient air temperature for storage	-25…70 °C
