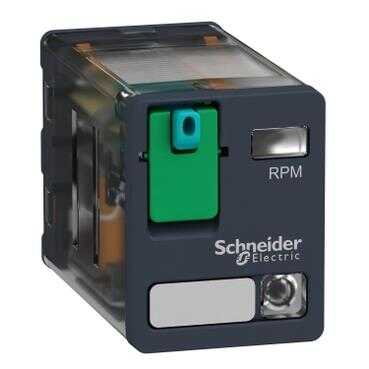

Gelince Sizi Arayalım| Range of Product | Harmony Electromechanical Relays |
|---|---|
| Series name | RPM series |
| Product or Component Type | Plug-in relay |
| Contacts type and composition | 2 C/O |
| Relay Type | Power relay |
| Status LED | With |
| [Uc] control circuit voltage | 12 V DC |
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Release time | 20 ms at nominal voltage |
| Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
| [Ithe] conventional enclosed thermal current | 15 A -40…131 °F (-40…55 °C) |
| Control Type | Lockable test button |
|---|---|
| [Ie] rated operational current | 15 A 277 V AC) UL 15 A 28 V DC) UL 15 A 250 V AC) NO IEC 15 A 28 V DC) NO IEC 7.5 A 250 V AC) NC IEC 7.5 A 28 V DC) NC IEC |
| Degree of protection (Housing only) | IP40 conforming to IEC 60529 |
| Rated operational voltage limits | 9.6...13.2 V DC |
| [Ui] rated insulation voltage | 250 V IEC 300 V CSA 300 V UL |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Maximum switching capacity | 3750 VA 420 W |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles resistive |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs |
| Protection category | RT I |
| Mounting Support | DIN rail |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Net Weight | 0.079 lb(US) (0.036 kg) |
| Pollution degree | 3 |
|---|---|
| Standards | CSA C22.2 No 14 IEC 61810-1 UL 508 |
| Product Certifications | CSA UL EAC |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation 5 gn +/- 1 mm 10…150 Hz)5 cycles not operating |
| Shock resistance | 15 gnin operation 30 gnnot operating |
| Category | US10CP221127 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 3389119401944 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.79 in (2.000 cm) |
| Package 1 Width | 1.18 in (3.000 cm) |
| Package 1 Length | 1.77 in (4.500 cm) |
| Package 1 Weight | 1.305 oz (37.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 1.18 in (3.000 cm) |
| Package 2 Width | 4.13 in (10.500 cm) |
| Package 2 Length | 4.92 in (12.500 cm) |
| Package 2 Weight | 14.497 oz (411.000 g) |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 5.91 in (15.000 cm) |
| Package 3 Width | 5.91 in (15.000 cm) |
| Package 3 Length | 15.75 in (40.000 cm) |
| Package 3 Weight | 11.202 lb(US) (5.081 kg) |
| Warranty | 18 months |
|---|
