Maximum Basınç
200 bar

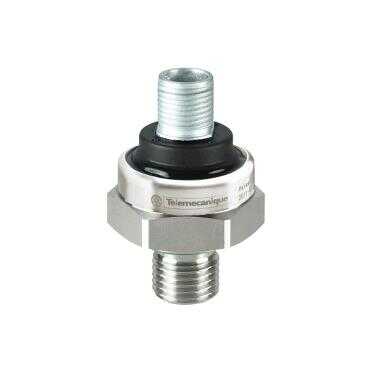

| Range of product | Telemecanique Pressure sensors XM |
|---|---|
| Product or component type | Electronic pressure sensors |
| Pressure sensor type | Pressure transmitter |
| Pressure sensor name | XMLP |
| electrical circuit type | Control circuit |
| Pressure rating | 100 bar |
| local display | Without |
| Controlled fluid | Fresh water (0…120 °C) Air (-30…120 °C) Hydraulic oil (-30…120 °C) Gas (-30…120 °C) Refrigeration fluid (-30…120 °C) |
| Fluid connection type | G 1/4A (male) conforming to DIN 3852-A |
| Electrical connection | 1 male connector M12 4 pins |
| [Us] rated supply voltage | 12...24 V DC SELV (voltage limits: 8…30 V) |
| Current consumption | < 20 mA |
| type of output signal | Analogue |
| Analogue output function | 4...20 mA, 2-wire |
| Quantity per set | Set of 1 |
| Type of packing | Individual |
| Pressure setting range | 0…100 bar |
|---|---|
| Maximum permissible accidental pressure | 200 bar |
| Destruction pressure | 600 bar |
| materials in contact with fluid | Stainless steel type 17-4PH Stainless steel type AISI 304 |
| Operating position | Any position |
| Protection type | Load short-circuit Reverse polarity |
| Electromagnetic compatibility | Susceptibility to electromagnetic fields conforming to EN/IEC 61000-4-3 10 V/m 80...1000 MHz Electrical fast transient/burst immunity test conforming to EN/IEC 61000-4-4 2 kV 1.2/50 µs shock waves immunity test conforming to EN/IEC 61000-4-5 500 V 12 Ohm, 1 kV 42 Ohm Radiated RF fields conforming to EN/IEC 61000-4-6 10 V 0.15...80 MHz Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 8 kV air, 4 kV contact |
| [Uimp] rated impulse withstand voltage | 0.5 kV |
| Response time on output | < 5 ms 92 % of full scale |
| Measurement accuracy | +/- 0.5 % of the measuring range |
| Resolution | Infinity |
| Drift of the sensitivity | +/- 0.02 % of measuring range/°K |
| Drift of the zero point | +/- 0.02 % of measuring range/°K |
| Long term stability | +/- 0.2 % of the measuring range |
| Mechanical durability | 10000000 cycles |
| Net weight | 0.05 kg |
| Diameter | 30 mm |
| Length | 26 mm |
| Scale type | Fixed differential |
| Standards | CE EN/IEC 61326-1 |
|---|---|
| Product certifications | EAC RCM cULus |
| Protective treatment | TC |
| Ambient air temperature for operation | -30…100 °C |
| Ambient air temperature for storage | -30…100 °C |
| Vibration resistance | 20 gn (f = 10…2000 Hz) conforming to EN/IEC 60068-2-64 |
| Shock resistance | 25 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| IP degree of protection | IP65 conforming to EN/IEC 60529 IP67 conforming to EN/IEC 60529 IP69K conforming to DIN 40050 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Warranty | 18 months |
|---|
