Ürün Hakkında Önemli Uyarı:
Bu ürünün orijinal kutusu bulunmamaktadır !
Sipariş verirken bu detayı dikkate alarak alım yapmanızı rica ederiz. Ambalajlama, ürünün güvenli bir şekilde teslim edilmesini sağlayacak şekilde yapılmaktadır. Herhangi bir sorunuz olursa bizimle iletişime geçmekten çekinmeyin.
Main
| Range of Product |
Modicon STB distributed I/O solution |
| Product or Component Type |
Standard power distribution kit |
Complementary
| Kit composition |
STBXTS2130, spring type connectors

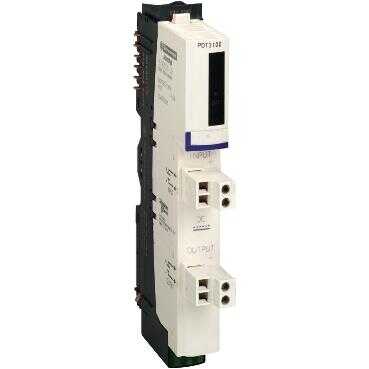

STBPDT3100 module
STBXBA2200 base
STBXTS1130, screw type connectors |
| [Us] rated supply voltage |
24 V |
| Supply circuit type |
DC |
| Power supply output current |
10 A 113 °F (45 °C) input/output circuit)
12 A 86 °F (30 °C) input/output circuit)
6 A 158 °F (70 °C) input/output circuit)
8 A 140 °F (60 °C) input/output circuit)
0…4 A 86 °F (30 °C) input circuit)
0…8 A 86 °F (30 °C) output circuit) |
| Voltage range |
19.2...30 V DC sensor/actuator bus |
| Hot swapping fallback |
Hot swapping illegal |
| Protection type |
Built-in overcurrent protection, 10 A time-lag output circuit
Built-in overcurrent protection, 5 A time-lag input circuit
Reverse polarity actuator bus |
| Permissible current |
30 A for 2 minutes grounding terminal |
| Voltage detection threshold |
< 15 V +/-1 DC IN/OUT LED lit
>= 15 V +/-1 DC IN/OUT LED non lit |
| Product Compatibility |
Mounting base STBXBA2200 |
| Marking |
CE |
| overvoltage category |
II |
| Status LED |
1 LED (Green) actuator bus power supply (OUT)
1 LED (Green) sensor bus power supply (IN) |
| Depth |
2.6 in (65.1 mm) |
| Height |
4.9 in (125 mm) |
| Width |
0.7 in (18.4 mm) |
| Product Weight |
0.29 lb(US) (0.13 kg) |
Environment
| Product Certifications |
UL
FM Class 1 Division 2
CSA |
| Pollution degree |
2 IEC 60664-1 |
| Operating altitude |
<= 6561.68 ft (2000 m) |
| IP degree of protection |
IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation |
32…140 °F (0…60 °C) (without)
-13…158 °F (-25…70 °C) (with derating factor) |
| Ambient Air Temperature for Storage |
-40…185 °F (-40…85 °C) |
| Relative humidity |
95 % 140 °F (60 °C) without condensation |
| Vibration resistance |
+/-0.35 mm 10…58 Hz
3 gn 58…150 Hz 35 x 7.5 mm symmetrical DIN rail
5 gn 58…150 Hz 35 x 15 mm symmetrical DIN rail |
| Shock resistance |
30 gn 11 ms IEC 88 reference 2-27 |
Ordering and shipping details
| Category |
US1PC3218215 |
| Discount Schedule |
PC32 |
| GTIN |
3595863949216 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.98 in (2.5 cm) |
| Package 1 Width |
3.35 in (8.5 cm) |
| Package 1 Length |
5.51 in (14.0 cm) |
| Package 1 Weight |
5.3 oz (150.0 g) |
| Unit Type of Package 2 |
S02 |
| Number of Units in Package 2 |
24 |
| Package 2 Height |
5.91 in (15 cm) |
| Package 2 Width |
11.81 in (30 cm) |
| Package 2 Length |
15.75 in (40 cm) |
| Package 2 Weight |
8.876 lb(US) (4.026 kg) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
384 |
| Package 3 Height |
29.53 in (75.0 cm) |
| Package 3 Width |
23.62 in (60.0 cm) |
| Package 3 Length |
31.50 in (80.0 cm) |
| Package 3 Weight |
166.49 lb(US) (75.52 kg) |
Contractual warranty
| Warranty |
18 months |
