Schneider

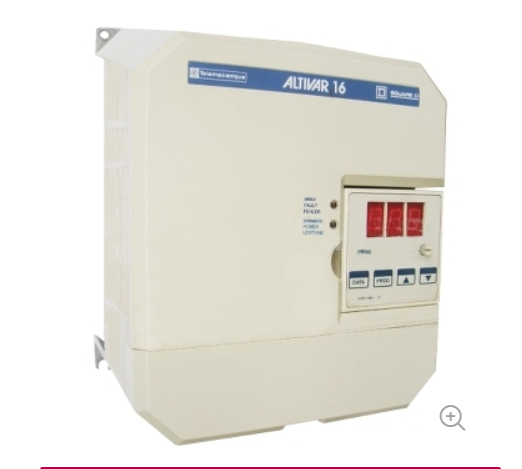

Schenider Electric ATV16U18N4Q, ATV16 1,8KVA 1 hp - 400/460V 3 phases - IP31
Ürün Kodu: ATV16U18N4Q
(0)
66.476,40 TL
13.295,28 TL
%80
Daha Fazla Hız Kontrol- ATV
Adet
KoleksiyonFiyat Alarmı
| Range of Product | Altivar 16 |
|---|---|
| Product or Component Type | Variable speed drive |
| Product destination | Asynchronous motors |
|---|---|
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| Supply frequency | 50/60 Hz +/- 5 % |
| Network frequency limits | 47.5…63 Hz |
| Phase | 3 phase |
| Motor power kW | 0.75 kW |
| Maximum Horse Power Rating | 1 hp |
| Line current | 3.9 A 380 V 3.5 A 500 V |
| Apparent power | 5 kVA 400 V |
| Prospective line Isc | 5 kA |
| Continuous output current | 2.3 A 380 V 2.1 A 500 V |
| Speed drive output frequency | 0.5…400 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 12...16 kHz with derating factor 2...12 kHz adjustable |
| Local signalling | 1 LED (red) for DC bus energized |
| output voltage | <= power supply voltage |
| Communication Port Protocol | Modbus |
| Connector Type | 1 RJ45 |
| Physical interface | 2-wire RS 485 |
| Transmission frame | RTU |
| Transmission Rate | 9600 bps or 19200 bps |
| Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Height | 7.9 in (200 mm) |
| Width | 7.09 in (180 mm) |
| Depth | 5.7 in (144 mm) |
| Option card | Communication card APOGEE FLN Communication card BACnet Communication card LonWorks Communication card METASYS N2 |
| IP degree of protection | IP31 EN 60530 IP31 EN 61800-5-2 IP31 IEC 60529 IP31 IEC 61800-5-1 |
|---|---|
| Ambient air temperature for operation | 14…104 °F (-10…40 °C) (without derating) 104…122 °F (40…50 °C) (with derating factor) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) 3280.84...9842.52 ft (1000...3000 m) |
| Category | 22031-***OBSOLETE***ATV 16 DRIVE |
|---|---|
| Discount Schedule | CP4B |
| GTIN | 3389110532029 |
| Returnability | No |
| Country of origin | SG |
