Gelince Sizi ArayalımRange of product | Harmony XD2 |
---|---|

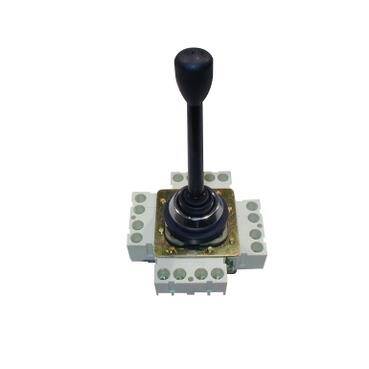

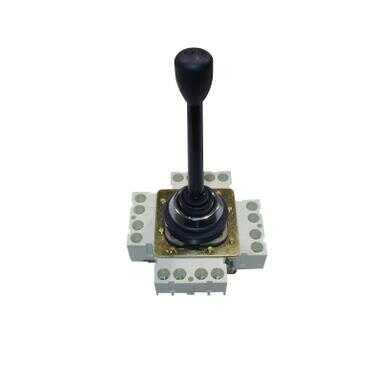

Product or component type | Complete joystick controller |
Device short name | XD2 |
Mounting diameter | 30 mm |
Bezel material | Chromium plated metal |
Operator position information | All positions |
---|---|
Notch per direction | 1…2 |
Operator direction information | 8 directions |
Contacts type and composition | 1 C/O for snap action 2 C/O for snap action |
Short-circuit protection | 10 A gG (gl) Neozed cartridge fuse conforming to IEC 60947-5-1 |
Connections - terminals | Captive screw clamp terminals, 2 x 1.5 mm² with or without cable end Captive screw clamp terminals, 1 x 2.5 mm² with or without cable end |
Electrical durability | 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
Contact code designation | A600-Q600 |
Overvoltage category | Class I conforming to IEC 61140 |
Mechanical durability | 1000000 cycles |
fixing center | 100 x 100 mm |
Return | to 0 position |
Height | 127 mm |
Depth | 91 mm |
Net weight | 0.3 kg |
Standards | IEC 60947-5-1 |
---|---|
Product certifications | CSA DEMKO GL |
Protective treatment | TC |
Ambient air temperature for storage | -40…70 °C |
Ambient air temperature for operation | -25…70 °C |
Vibration resistance | 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
Shock resistance | 50 gn conforming to IEC 60068-2-27 |
IP degree of protection | IP65 conforming to IEC 60529 |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 9.400 cm |
Package 1 Width | 9.800 cm |
Package 1 Length | 18.000 cm |
Package 1 Weight | 352.000 g |
Unit Type of Package 2 | S03 |
Number of Units in Package 2 | 10 |
Package 2 Height | 30.000 cm |
Package 2 Width | 30.000 cm |
Package 2 Length | 40.000 cm |
Package 2 Weight | 3.950 kg |
